Front seat backrest, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

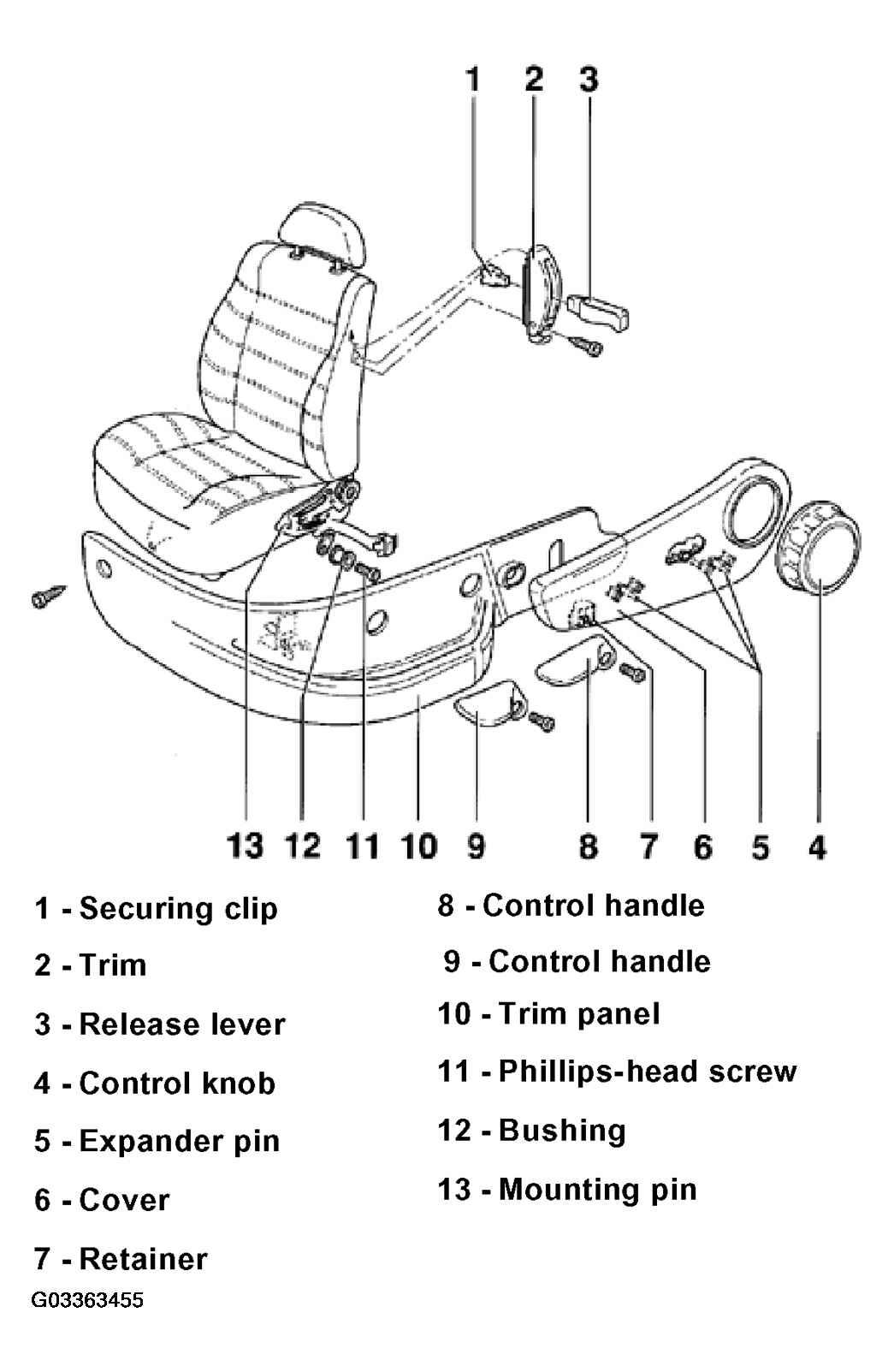

The following list refers to Fig 1
.
- - Securing clip
- - Trim
- - Release lever
- - Control knob
- Height adjustment only
- - Expander pin
- - Cover
- - Retainer
- - Control handle
- Height adjustment only
- - Control handle
- Comfort seat only
- - Trim panel
- Height adjustment only
- - Phillips-head screw
- - Bushing
- - Mounting pin
