Molded headliner, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

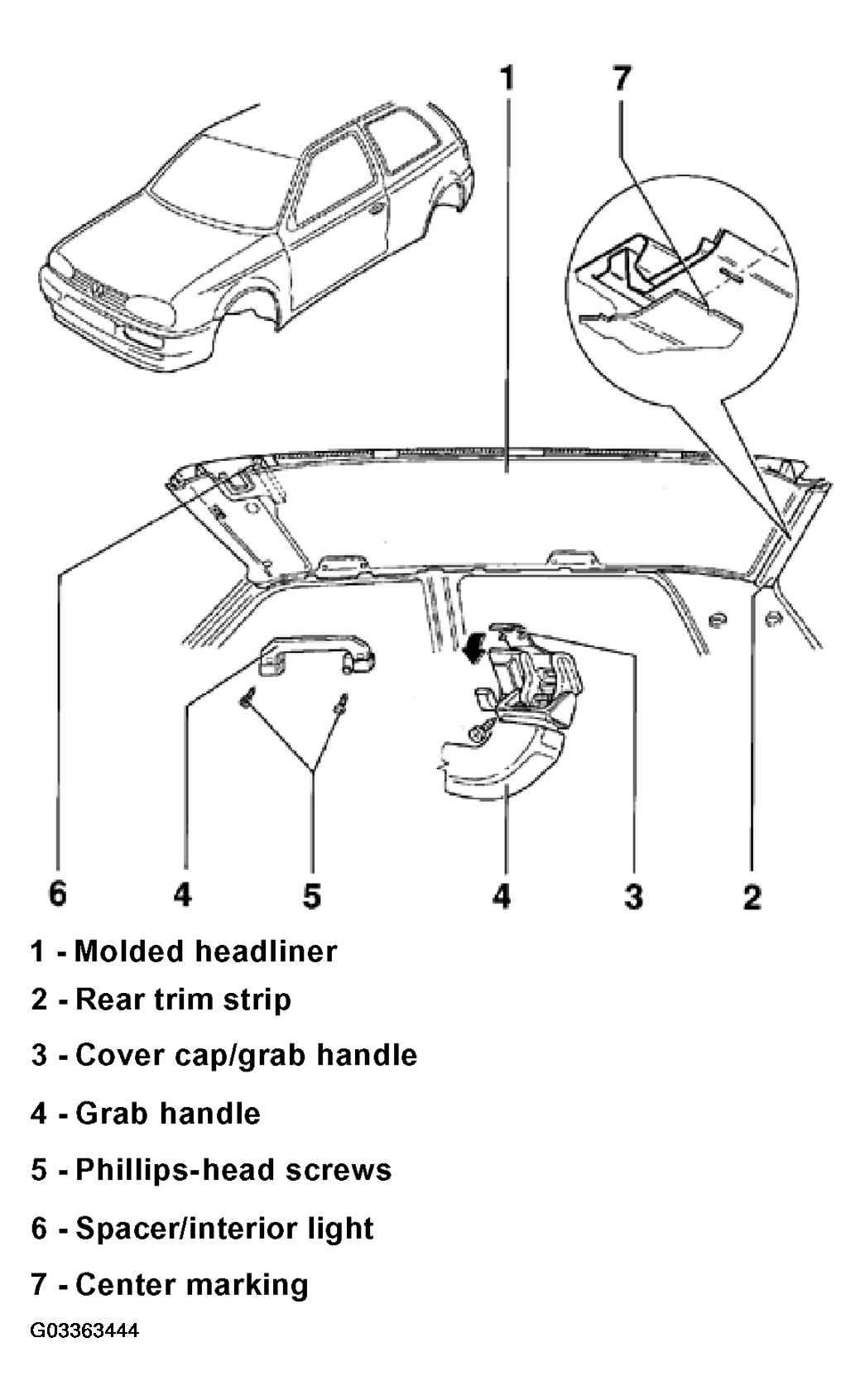

The following list refers to items in Fig 1.
- - Molded headliner
- Removing, see REMOVING MOLDED HEADLINER .
- - Rear trim strip
- Clipped onto roof frame
- - Cover cap/grab handle
- - Grab handle
- - Phillips-head screws
- - Spacer/interior light
- On vehicles with sunroof spacer is located in front of cut-out/interior light (in direction of travel).
- - Center marking
- Align to center of vehicle (center clip hole)
