C-pillar trim, upper, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Check seating of clips -3- and adjust if necessary.
Check seating and condition of clips -1-, correct if necessary.
Check function of belt height adjuster.

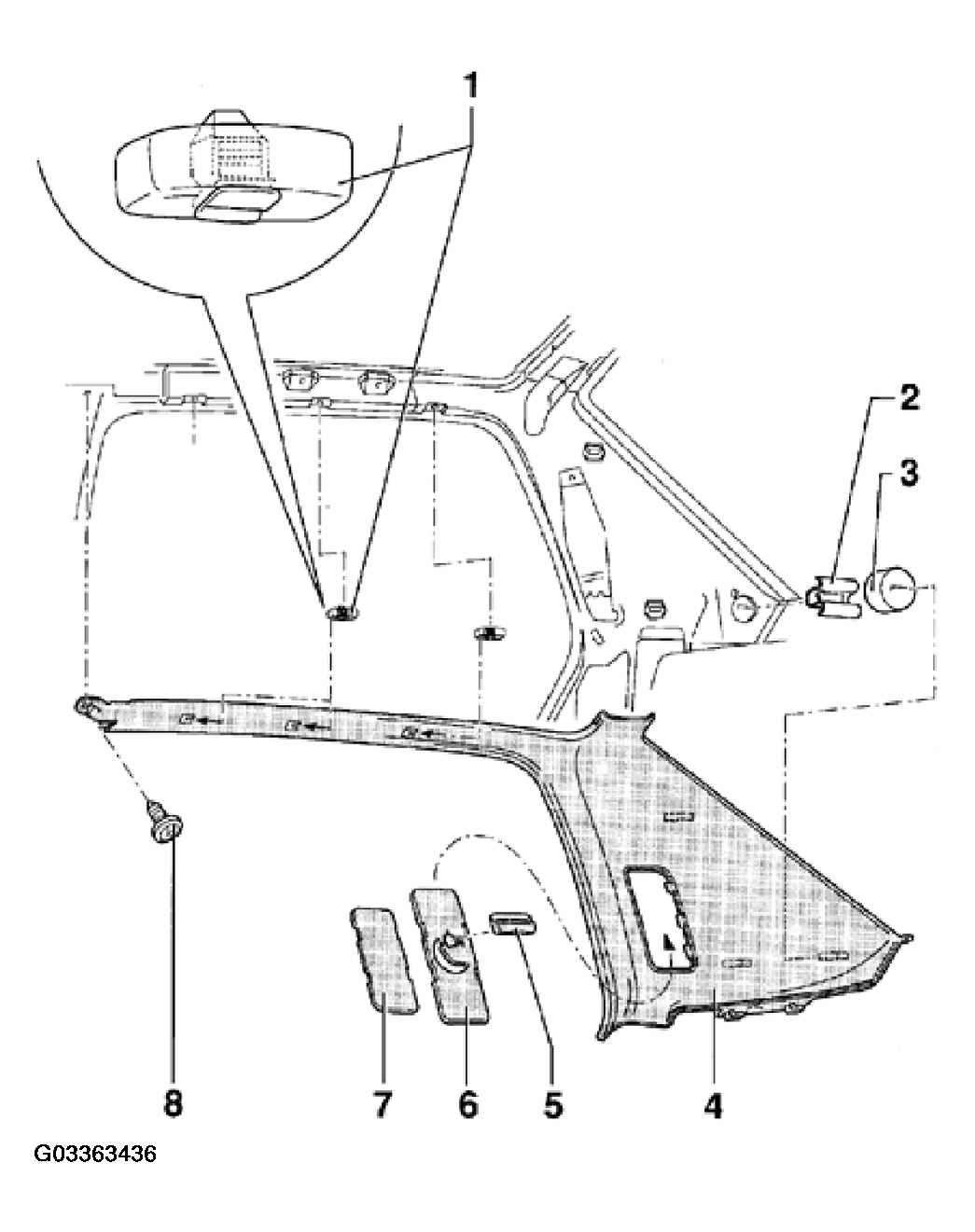

Fig 1: Installing C-Pillar Trim, Upper (Golf, GTI)

Check seating of clips -2- and adjust if necessary.
Check seating and condition of clips -1- and correct if necessary.
Check function of belt height adjuster.

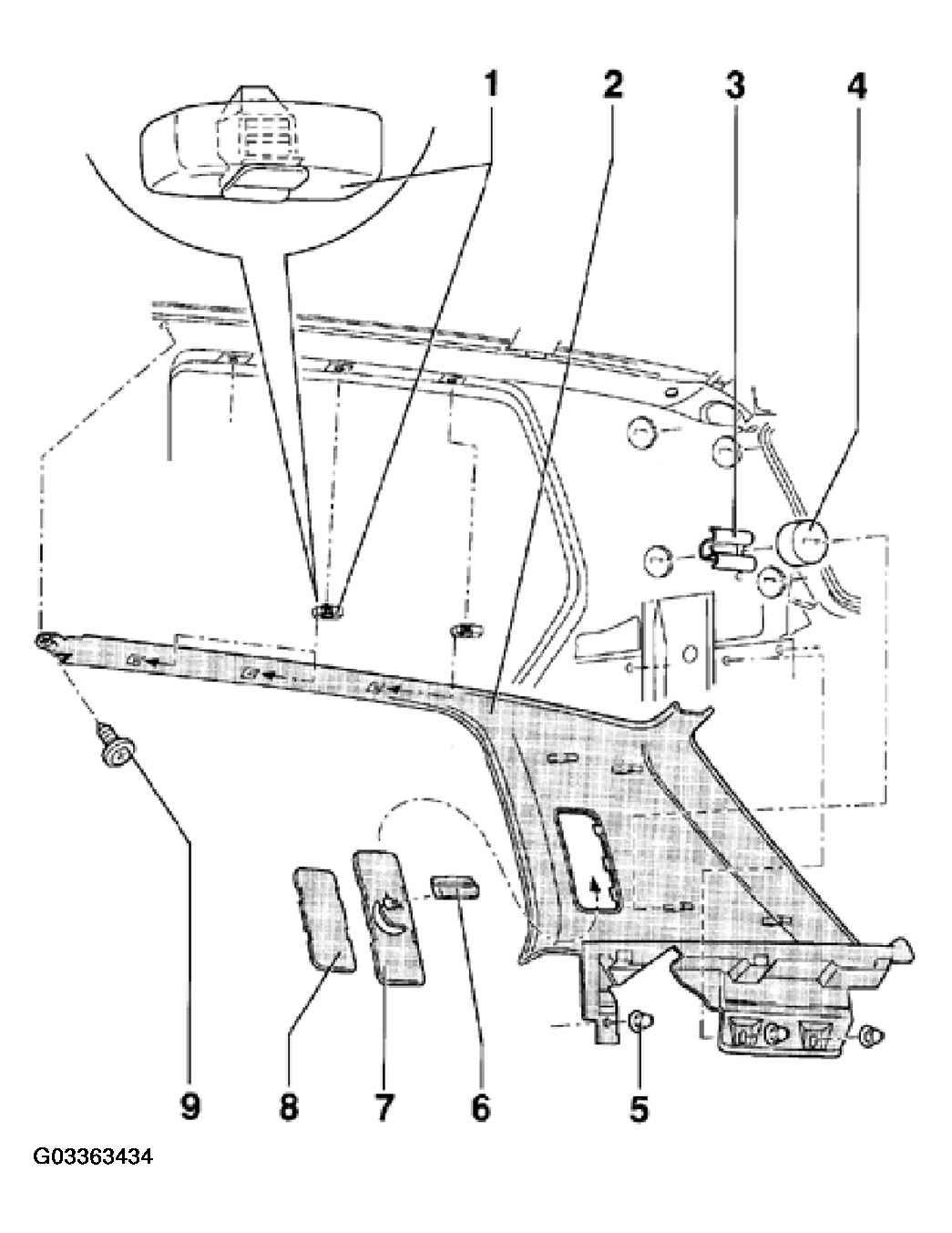

Fig 1: Installing C-Pillar Trim, Upper (Jetta)
