Removing instrument cluster cover

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Unclip covers -1- and light switch.

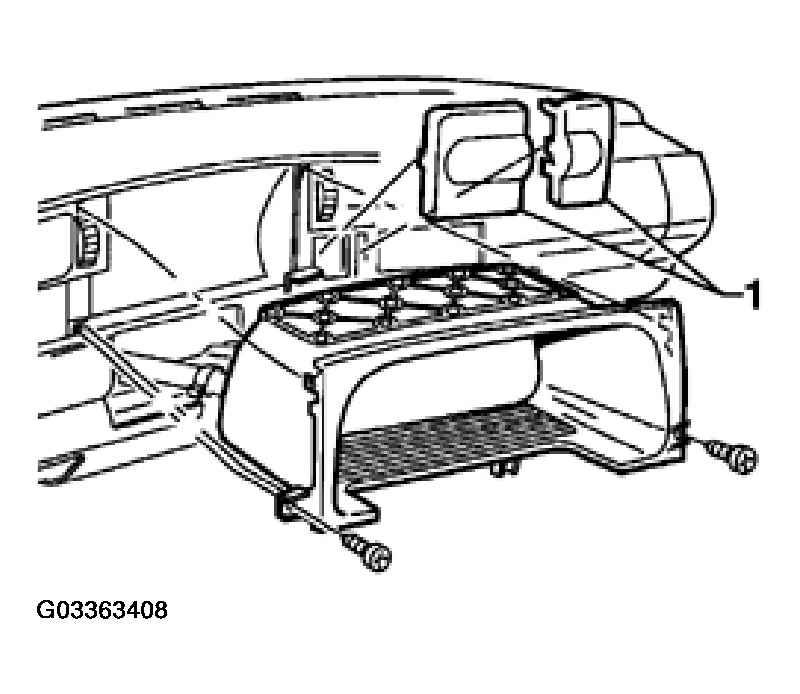

Fig 1: Removing Instrument Cluster Cover
Remove Phillips-head screws and pull out instrument cluster cover.
Remove instrument cluster mounting screws (arrows).

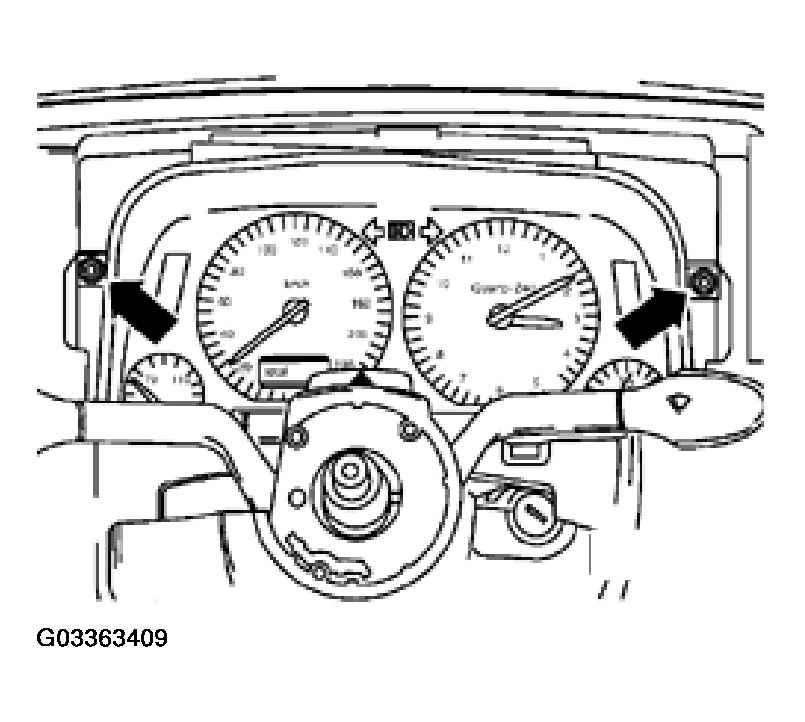

Fig 2: Removing Instrument Cluster Mounting Screws
Tip instrument cluster forward.
Disconnect multi-pin harness connector on rear of instrument cluster.
Remove instrument cluster.
Remove hex-head screws (11 including glove box).
Remove hex nuts -1- (located in plenum chamber).

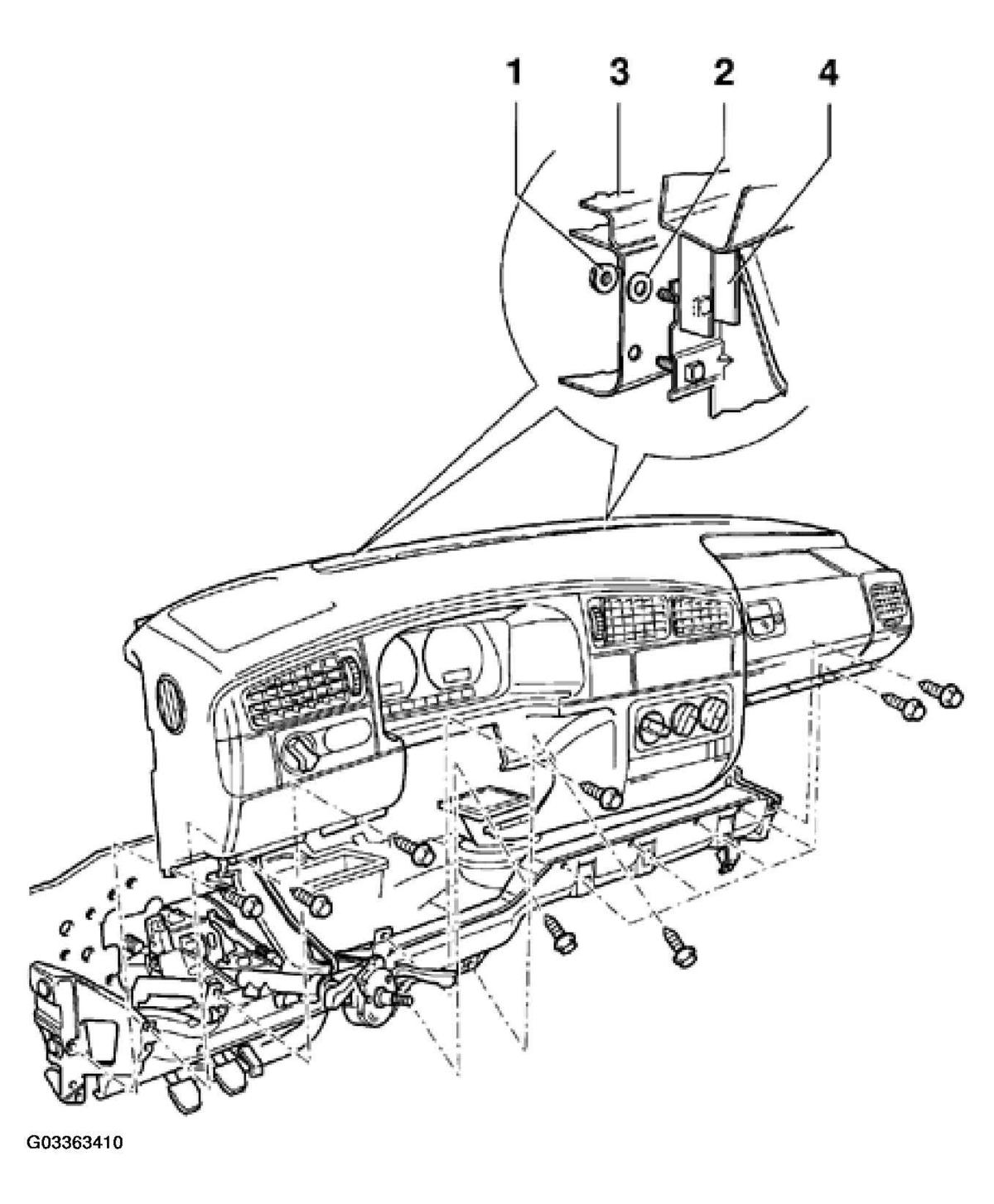

Fig 3: Removing Instrument Panel Hex Nuts And Screws
Partially remove instrument panel -4- from carrier/bulkhead -3-, and disconnect wiring harnesses from instrument panel.
Remove instrument panel.
NOTE: Make sure that sealing washers -2- are in place when installing the instrument panel.
