Window crank, removing and installing: Installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Clip window crank on drive in locked position.
Installed position with window closed:
- Angle -a- = 45 °+12°
- Arrow points forward

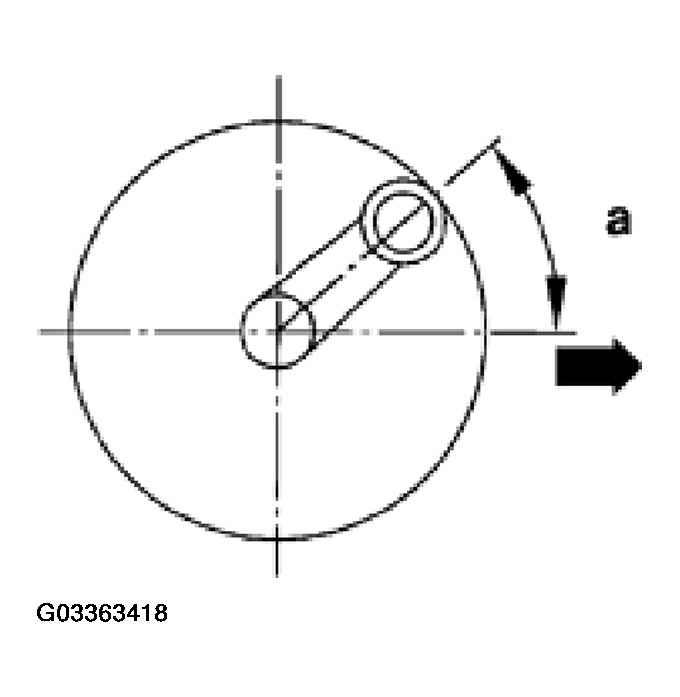

Fig 1 shows the left window crank (right window crank is opposite).
