Front belt reel with tensioning unit, removing and installing (4- door): Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
ALWAYS follow the prescribed work sequence for removing or installing the belt reel.
NOTE:

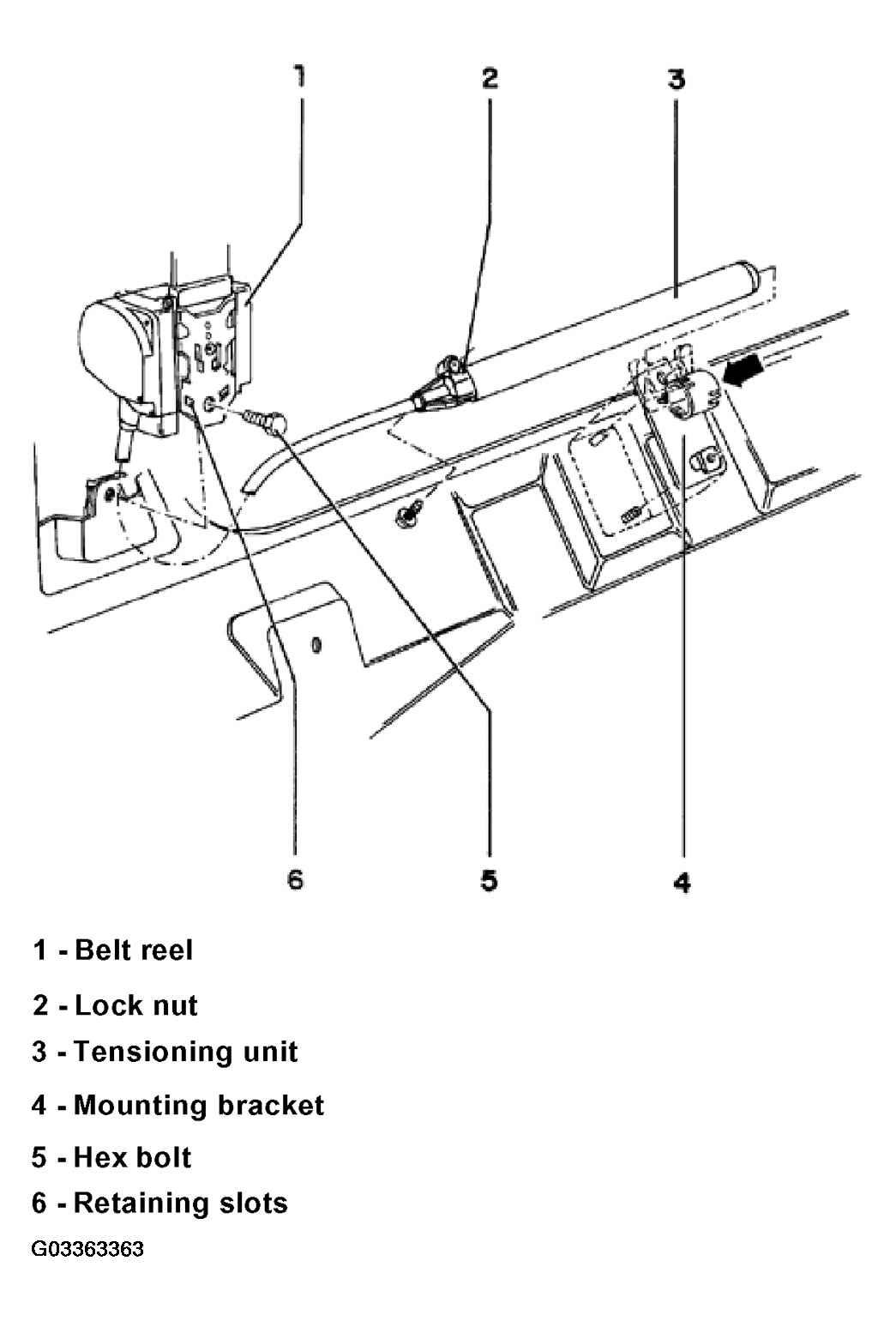

The following list refers to Fig 1
.
- - Belt reel
- - Lock nut
- 23 N.m (17 ft lb)
- - Tensioning unit
- - Mounting bracket
- For tensioning unit
- - Hex bolt
- 40 N.m (30 ft lb)
- - Retaining slots
- Engage with mounting lugs to determine belt reel mounting position
