Front belt reel with tensioning unit, removing and installing (2- door): Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
ALWAYS follow the prescribed work sequence for removing or installing the belt reel.
NOTE:

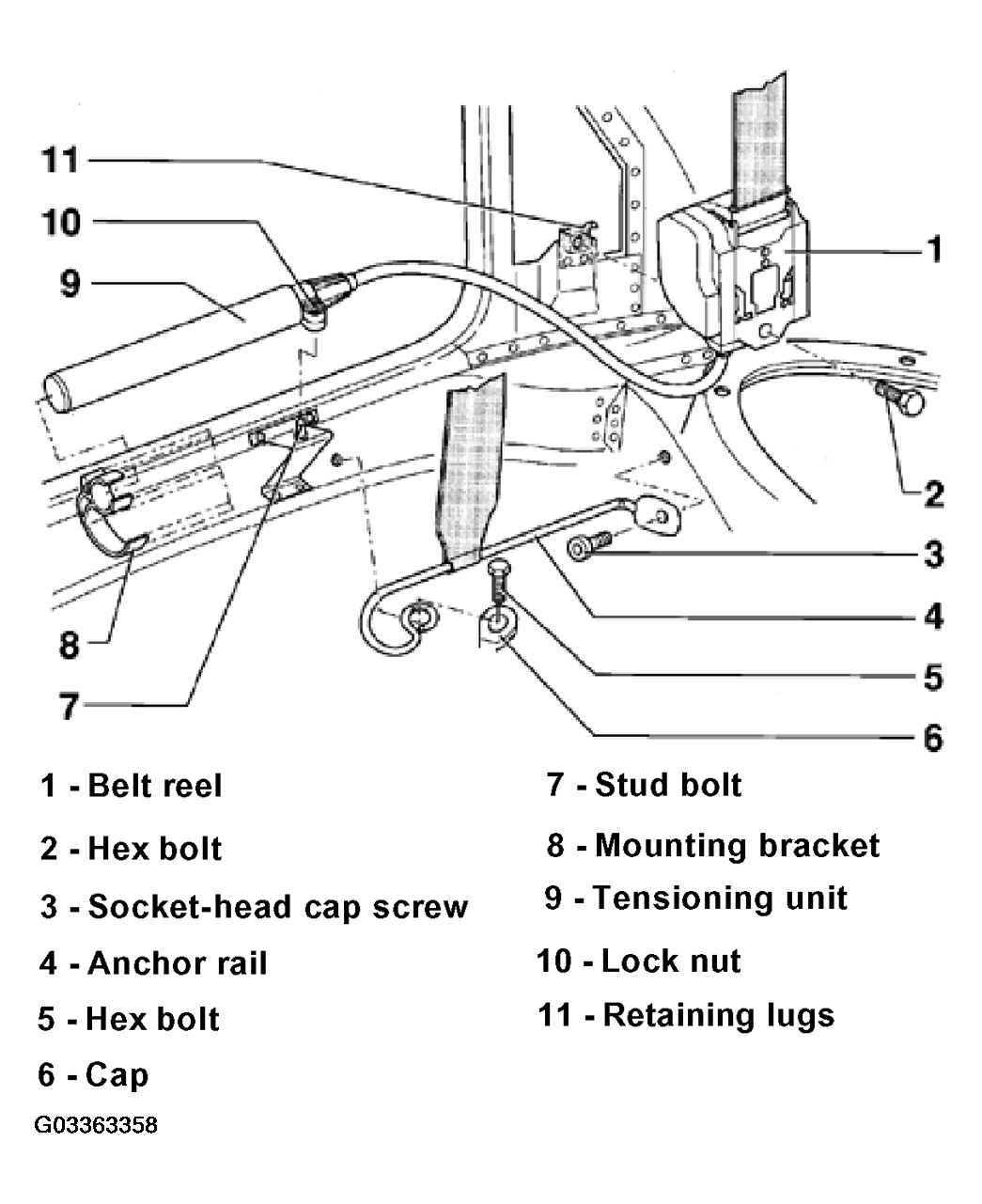

The following list refers to Fig 1
.
- - Belt reel
- - Hex bolt
- 40 N.m (30 ft lb)
- - Socket-head cap screw
- 23 N.m (17 ft lb)
- - Anchor rail
- - Hex bolt
- 40 N.m (30 ft lb)
- - Cap
- - Stud bolt
- - Mounting bracket
- For tensioning unit
- - Tensioning unit
- Is an integral part of seat belt
- Loosening the locking nut -10- makes the belt tensioner safe, tightening will make it operational again
- - Lock nut
- 20 N.m (15 ft lb)
- - Retaining lugs
- Determine belt reel mounting position
