Wiring harness for Temic airbag control module, Golf, GTI, Jetta up to 11.94
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

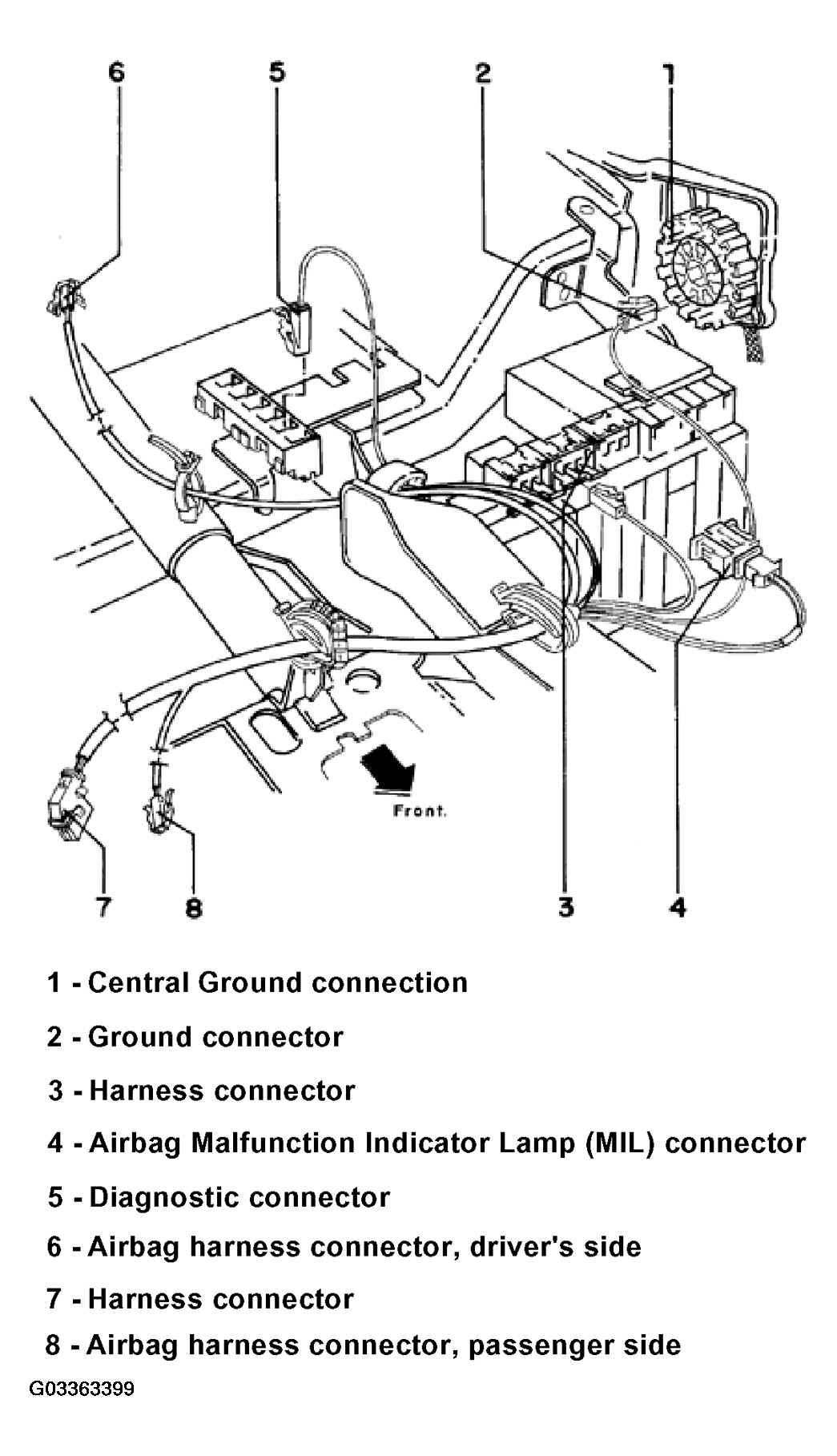

The following list refers to Fig 1
.
- - Central Ground connection
- - Ground connector
- Brown
- Discontinued after 11.94. See WIRING HARNESS FOR SIEMENS AIRBAG CONTROL MODULE WITHOUT GROUND WIRE (BROWN), GOLF, GTI, JETTA FROM 11.94 & UP .
- - Harness connector
- - Airbag Malfunction Indicator Lamp (MIL) connector
- - Diagnostic connector
- Red
- - Airbag harness connector, driver's side
- - Harness connector
- For airbag control module
- - Airbag harness connector, passenger side NOTE: The Temic airbag control module and this wiring harness are no longer available as replacement parts.
