Glovebox, removing and installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Removing and installing glovebox in knee bar (vehicle with passenger side airbag), refer to appropriate AIRBAG article in RESTRAINTS for airbag disabling procedure.
NOTE:

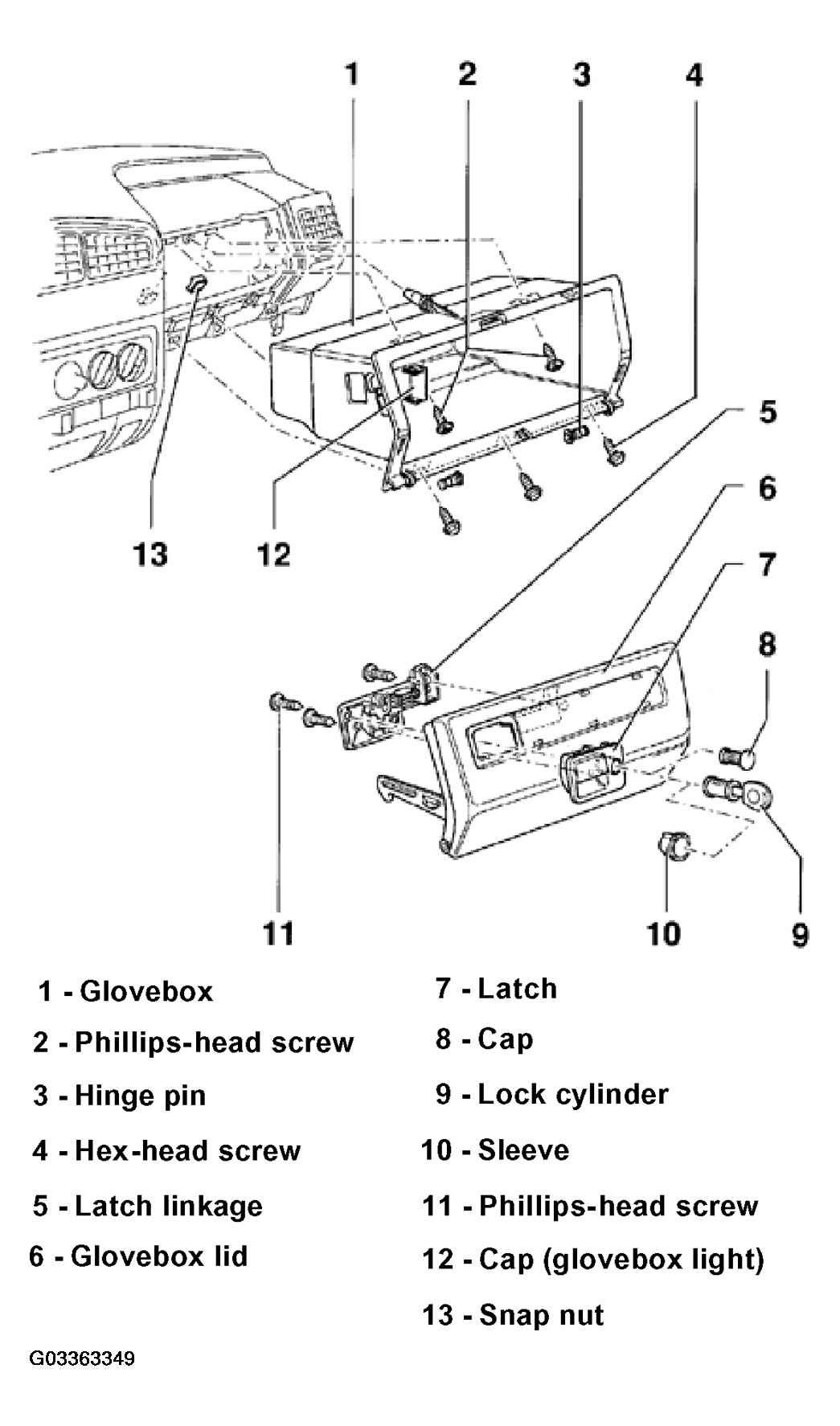

The following list refers to items in Fig 1
.
- - Glovebox
Removing:
- Remove passenger side storage shelf, refer to PASSENGER SIDE STORAGE SHELF, REMOVING .
- Unclip glovebox light (if present) and separate connections.
- Remove Phillips-head screws - 2 - and hex head screws - 4 -.
- - Phillips-head screw
- - Hinge pin
- - Hex-head screw
- - Latch linkage
- - Glovebox lid
Removing:
- Remove glovebox - 1 -
- Remove hinge pins - 3 - and take lid off.
- - Latch
- - Cap
- - Lock cylinder
- Common key locking can be maintained in vehicle by changing over or attaching locking plates, refer to LOCK CYLINDERS AND KEYS, MATCHING .
- - Sleeve
- Key must be inserted to remove sleeve
- - Phillips-head screw
- - Cap (glovebox light)
- - Snap nut
