Center console, removing and installing (vehicles with airbag): Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Pull out covers -1- and remove hex -head screws -2-.
Pull out and disconnect rear lid opening connector -3-.
Pull cover -A- to rear off center console.

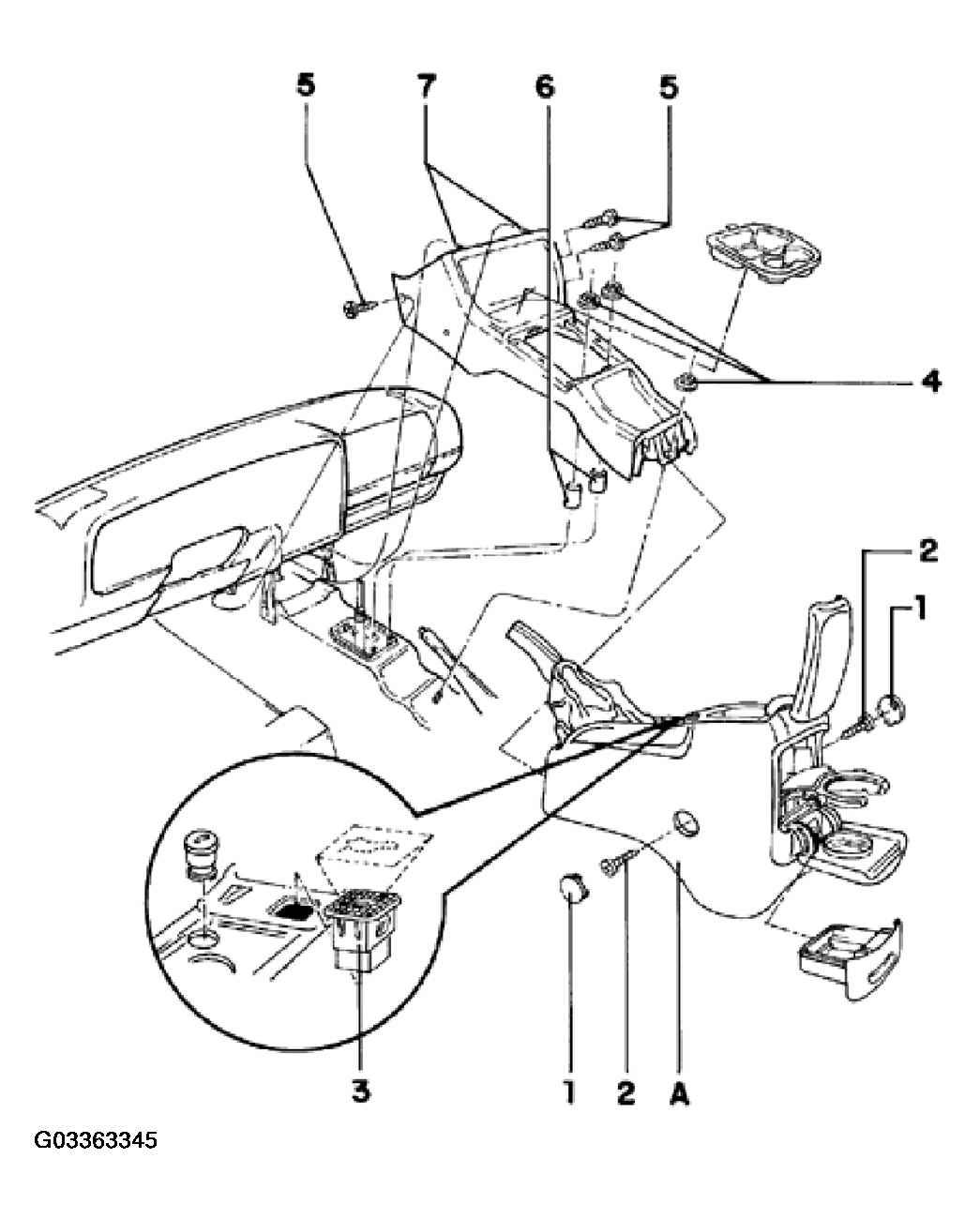

Fig 1: Center Console Assembly (Vehicles With Airbag)
Remove hex nuts -4-.
Remove Phillips-head screws -5- (one left-side, two right-side).
Lift rear end of console slightly and remove from instrument panel.
