Component layout (Jetta, 1997 m.y. and up)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
From model year 1997 the center high-mount brake light has been revised. The new light, with 5 bulbs instead of 14, is mount in the same location as the previous version.
NOTE:

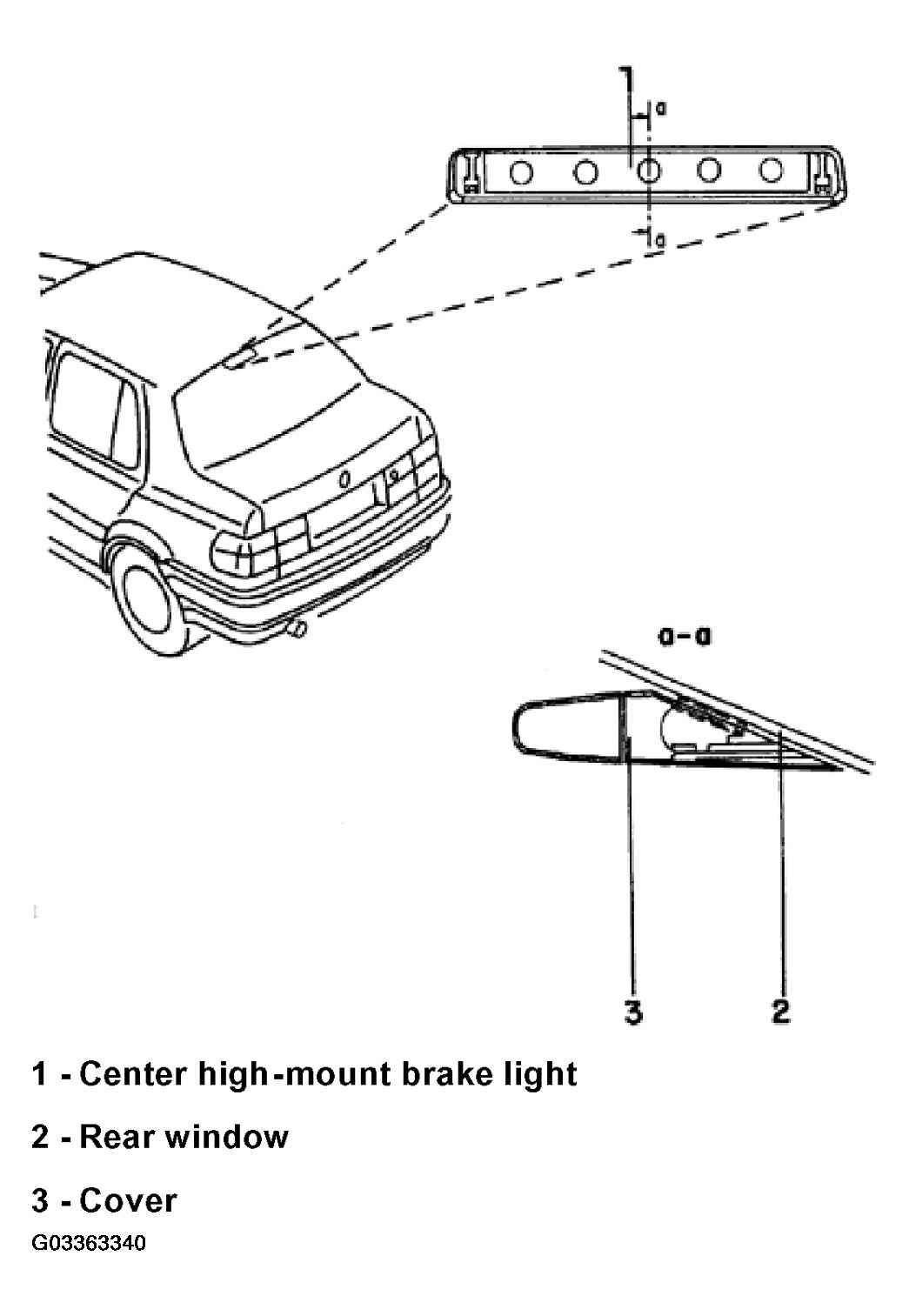

The following list refers to items in Fig 1
.
- - Center high-mount brake light
- Attached to rear window using adhesive
- 5 bulbs
- - Rear window
- - Cover
- Remove to replace bulbs
