Roof molding, removing and installing: Installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

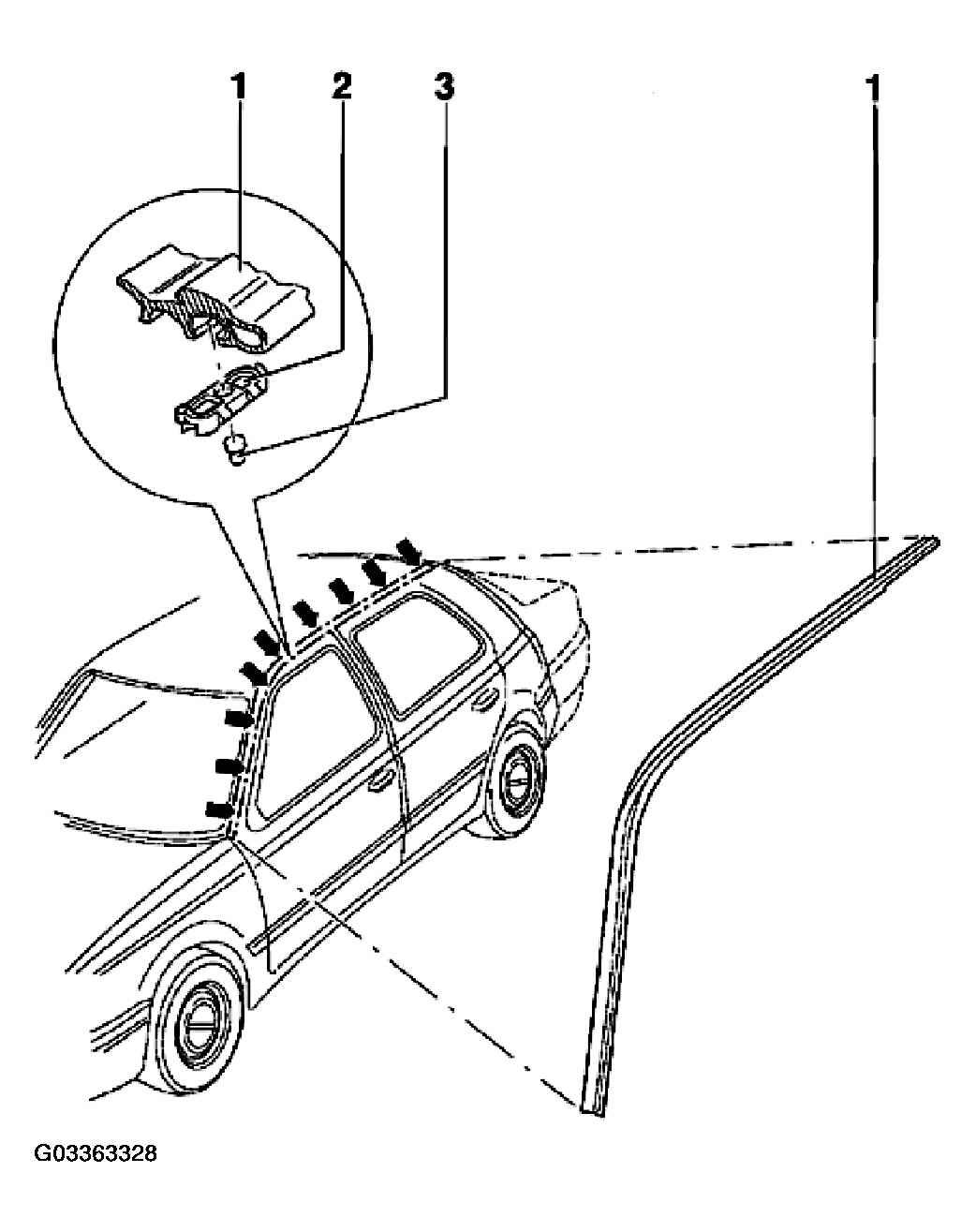

- Replace securing clips -2- (squeeze clips using pliers and remove from T - studs -3-).
- Insert front part of roof molding between A-pillar and fender.
- Position roof molding and press onto securing clips with palms of hands.
NOTE:
- When reusing roof molding, the framing strip in the roof molding must also be squeezed together.
- Inner dimension of framing strip: 8.6 mm (0.34 in).
