Assembly overview
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

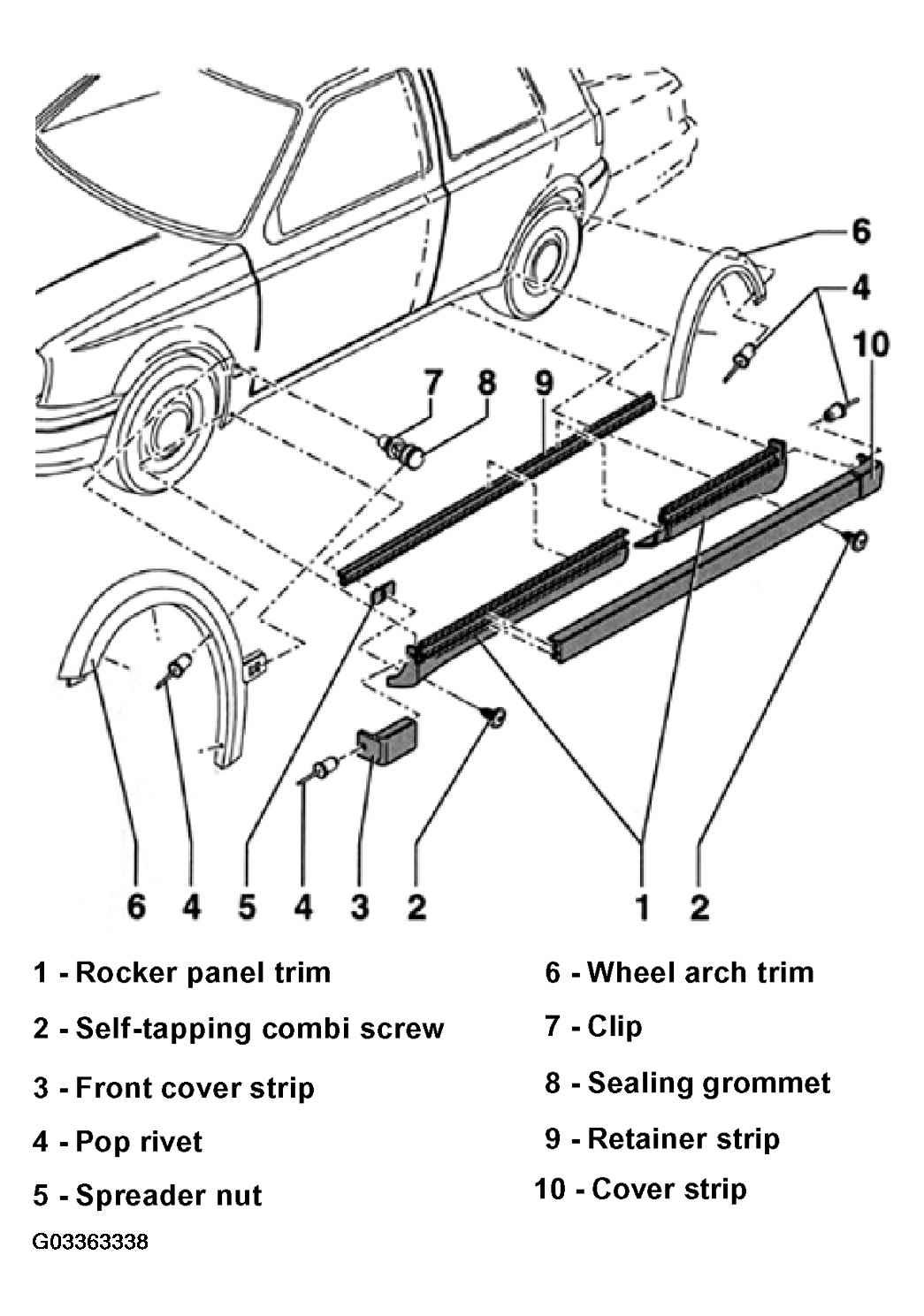

The following list refers to Fig 1.
- - Rocker panel trim
- - Self-tapping combi screw
- Qty: 7
- - Front cover strip
- - Pop rivet
- Qty: -2- for rocker panel trim
- Qty: -4- for wheel arch trim
- Qty: -3- for rear wheel arch trim
- - Spreader nut
- Qty. 7
- - Wheel arch trim
- - Clip
- - Sealing grommet
- - Retainer strip
- Removing and installing, refer to PROTECTIVE SIDE MOLDINGS, REPLACING .
- Self-adhesive
Installing:
- Clean exterior panels and afterwards treat with silicone remover and then rub dry.
- Pull off protective foil, attach retainer strip lightly and then press forcefully on. Working temperature approx. 20 °C (68 °F).
- - Cover strip
