Rear spoiler, retrofitting (Jetta)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Place 50 mm (2 in.) wide strip of adhesive tape on center of rear lid.

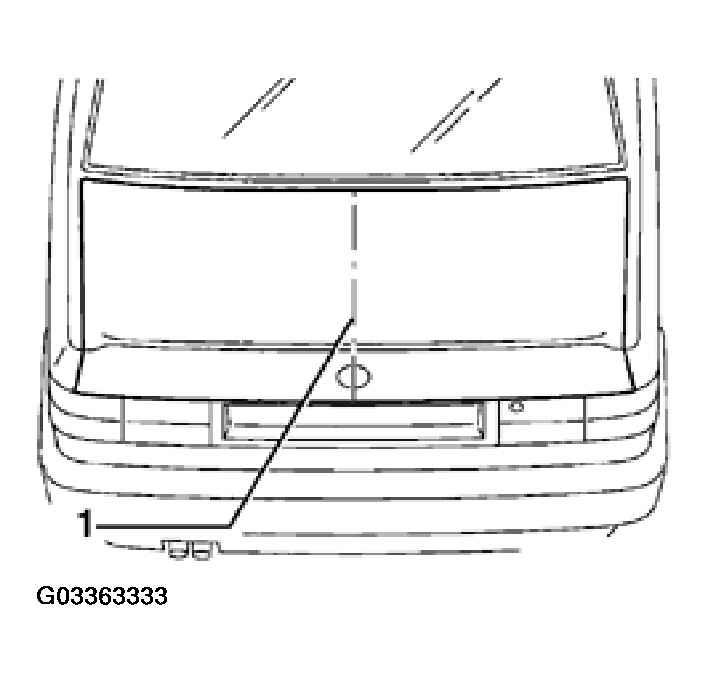

- Determine center line -1- of rear lid using tape measure and mark on adhesive tape.

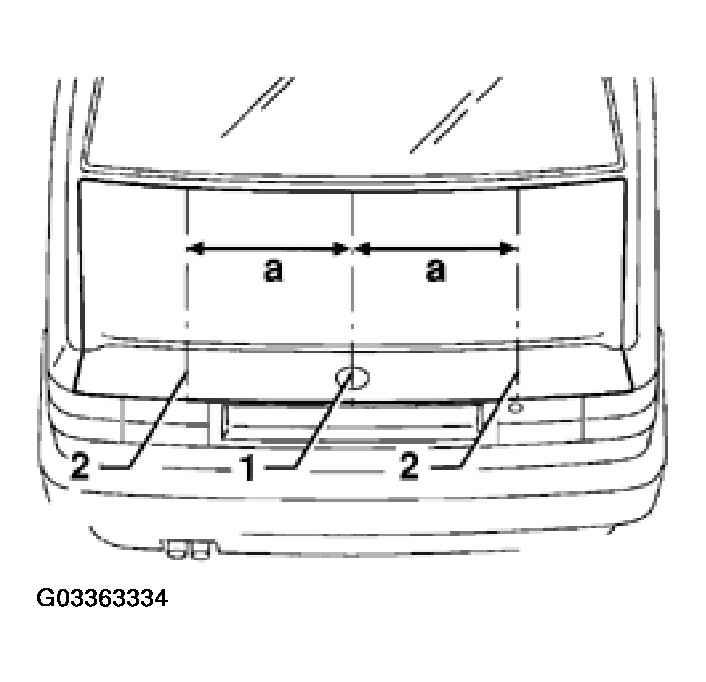

- Mark line -2- on adhesive tape at left and right of center line -1-.
Dimension -a- = 335 +/- 0.5 mm (13.19 +/- 0.20 in.)

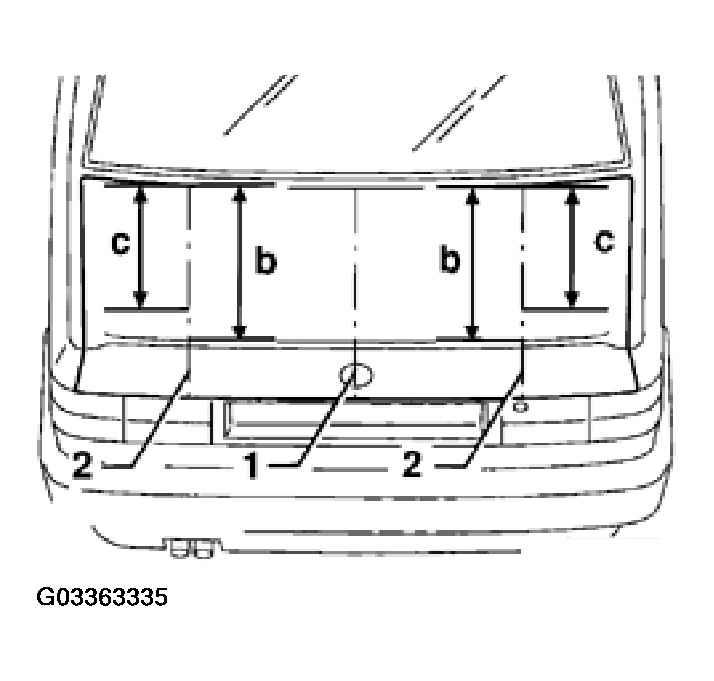

- Mark position of holes on line -2-.
- Dimension -b- = 415 +/- 0.5 mm (16.34 +/- 0.020 in.)
- Dimension -c- = 371 +/- 0.5 mm (14.61 +/- 0.020 in.)
- Carefully center (0.295 in.) punch holes and drill out with 7.5 mm drill bit.
- Remove burrs from holes.
- If necessary, rework holes slightly using round file to fit rear spoiler.NOTE: The paint structure must be restored and, if necessary, anti-corrosion measures carried out.

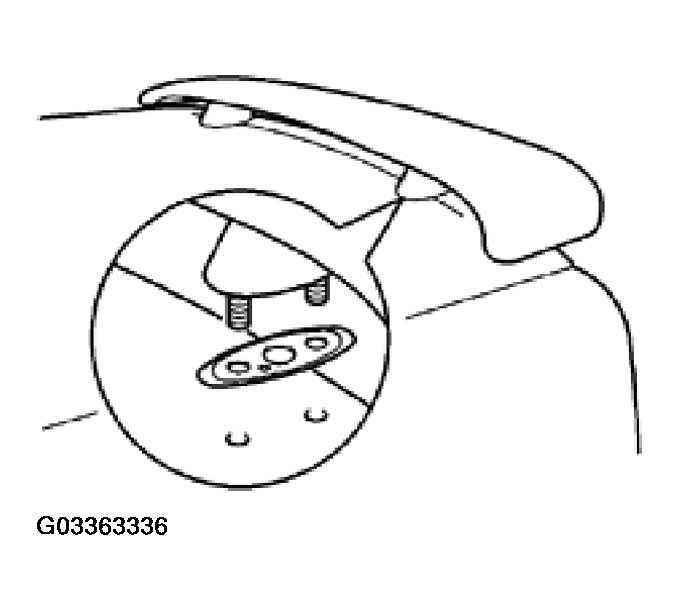

- After completing painting/corrosion protection measures, place rubber gaskets and spoiler on rear lid.

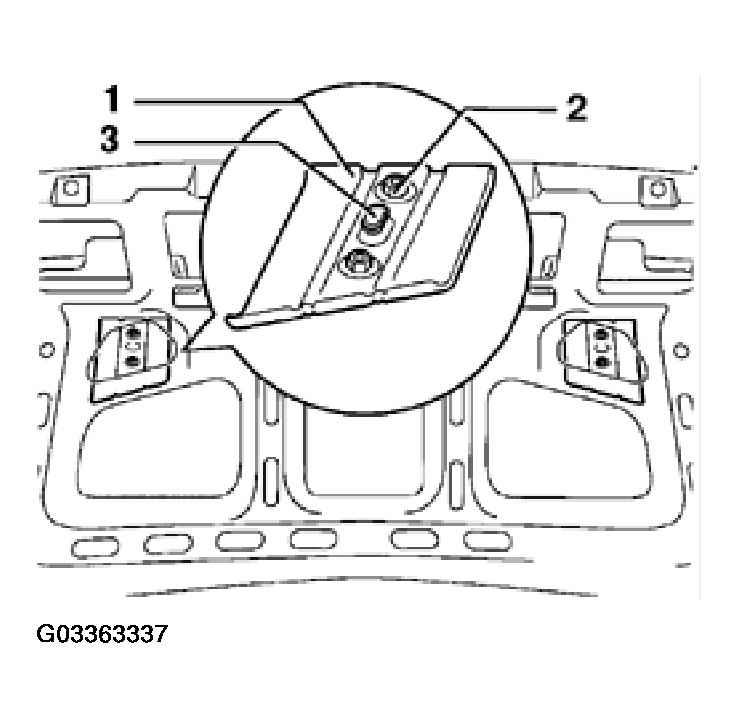

- From inside rear lid, install left and right reinforcements -1-, with longer edge toward outside of vehicle.
- Remove fitting aid -3- and tighten hex nuts -2-.
Tightening torque: 4 N.m (35 in. lb)
