Jetta up to m.y. 1995

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to Fig 1.

- Radiator grill
- Material: ASA
Removing:
- Remove screws -A-.
- Unlock lower catches -B- with screwdriver.
- Unlock remaining catches -C- using both hands (at black arrows).
- Pull radiator grille upward away from lock carrier.
- Insert small tool into holes -A-, press on catches -D- and remove, remove radiator grille.
Installing:
- Align radiator grille with center positioner (white arrow).
- Install catches -C-, -B- and -D-.
- Install and tighten screws -A-.
- Panel
- Removing: remove radiator grille and unclip panel from radiator grille
- Painted in body color
- VW emblem
- Clipped in radiator grill
  CAUTION: Remove and install the VW emblem -3- very carefully to avoid damaging the paint finish.

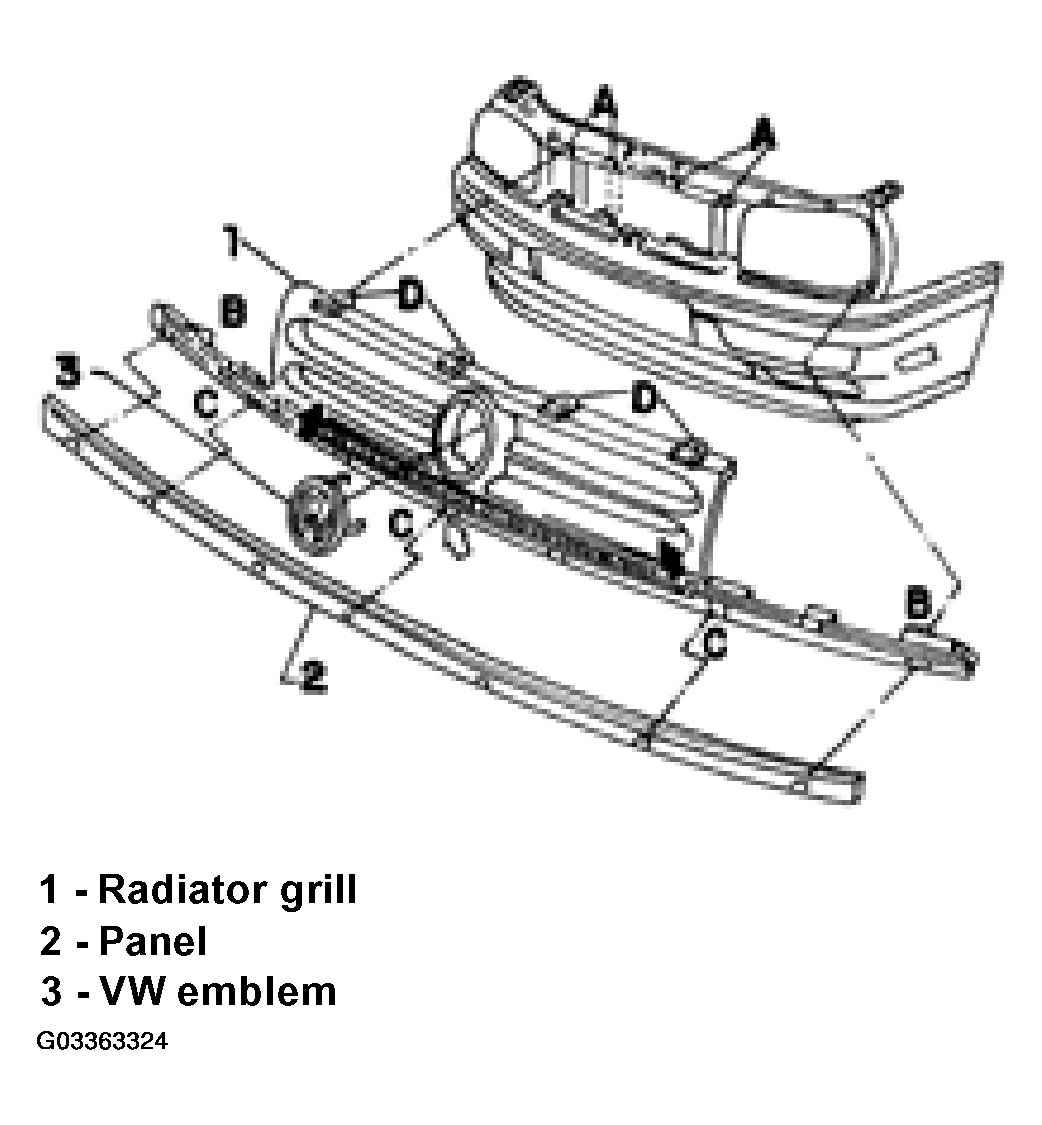

Fig 1: Identifying Radiator Grill Components (Jetta Up To M.Y. 1995)
