Golf, GTI
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

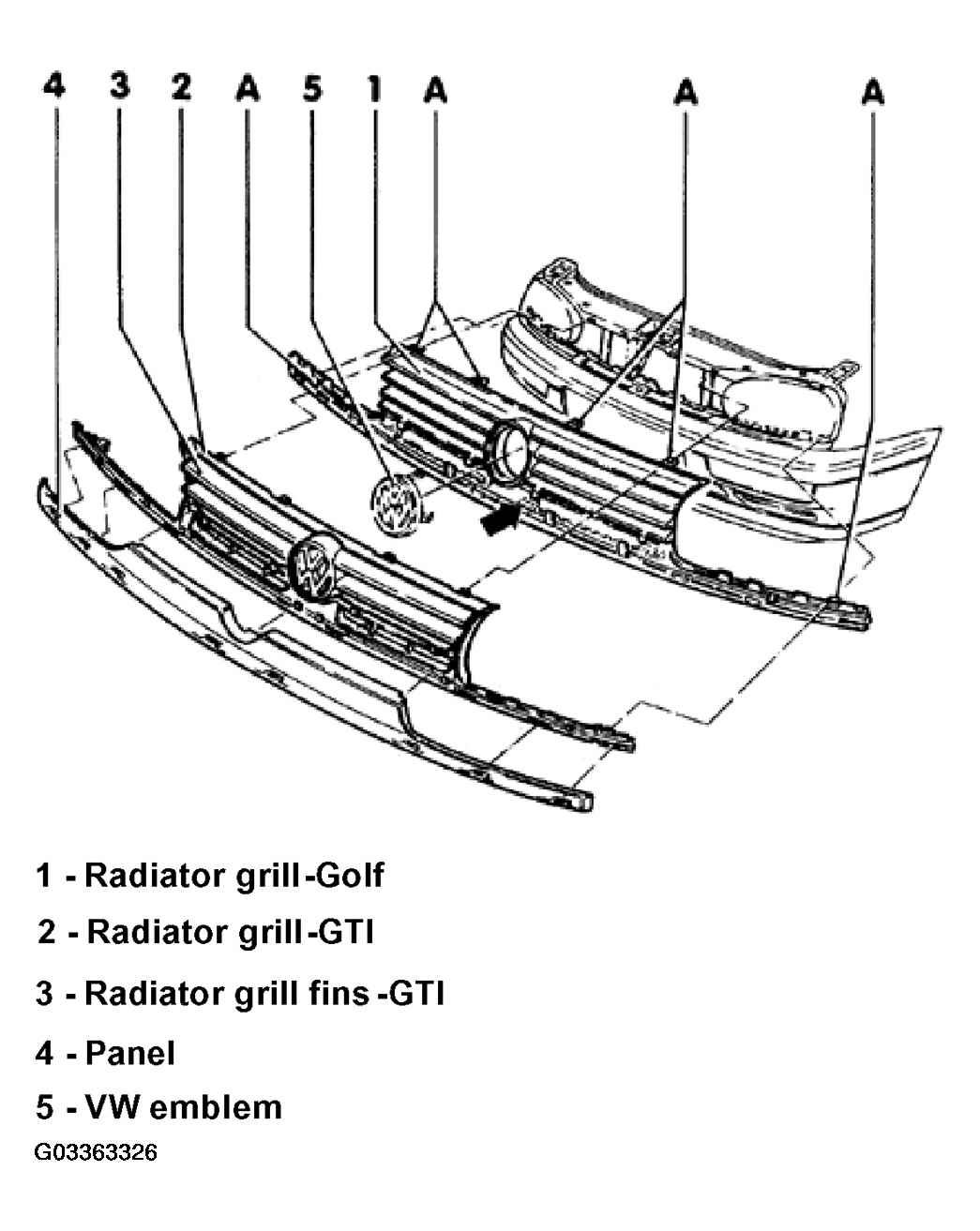

The following list refers to Fig 1.
- - Radiator grill - Golf
- Material: ASA
Removing:
- Remove screws -A-.
- Unlock lower catches at each end with screwdriver.
- Unlock remaining lower catches.
- Using both hands, pull radiator grill upward off lock carrier.
- Insert small tool (e.g. ice pick) into holes at -A- and press on catches (top of grill) and remove, then remove radiator grill.
Installing:
- Align radiator grill with center positioner (arrow).
- Fasten lower catches (end catches last).
- Fasten top catches.
- Install and tighten screws -A-.
- - Radiator grill - GTI
- Material: ASA
Removing:
- Remove screws -A-.
- Unlock lower catches at each end with screwdriver.
- Unlock remaining lower catches.
- Using both hands, pull radiator grill upward off lock carrier.
- Insert small tool (e.g. ice pick) into holes at -A- and press on catches (top of grill) and remove, then remove radiator grill.
Installing:
- Align radiator grill with center positioner (arrow).
- Fasten lower catches (end catches last).
- Fasten top catches.
- Install and tighten screws -A-.
- - Radiator grill fins-GTI
- Material: ABS (acrylic-nitrile butadiene-styrene copolymeride)
- Clipped in radiator grill -2-
- Painted in body color
- - Panel
- Removing: Remove radiator grill and unclip panel from radiator grill.
- Painted in body color
- - VW emblem
- Clipped in radiator grillCAUTION: Remove and install the VW emblem -5- very carefully to avoid damaging the paint finish.
- Clipped in radiator grill
