Exterior rear-view mirror, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

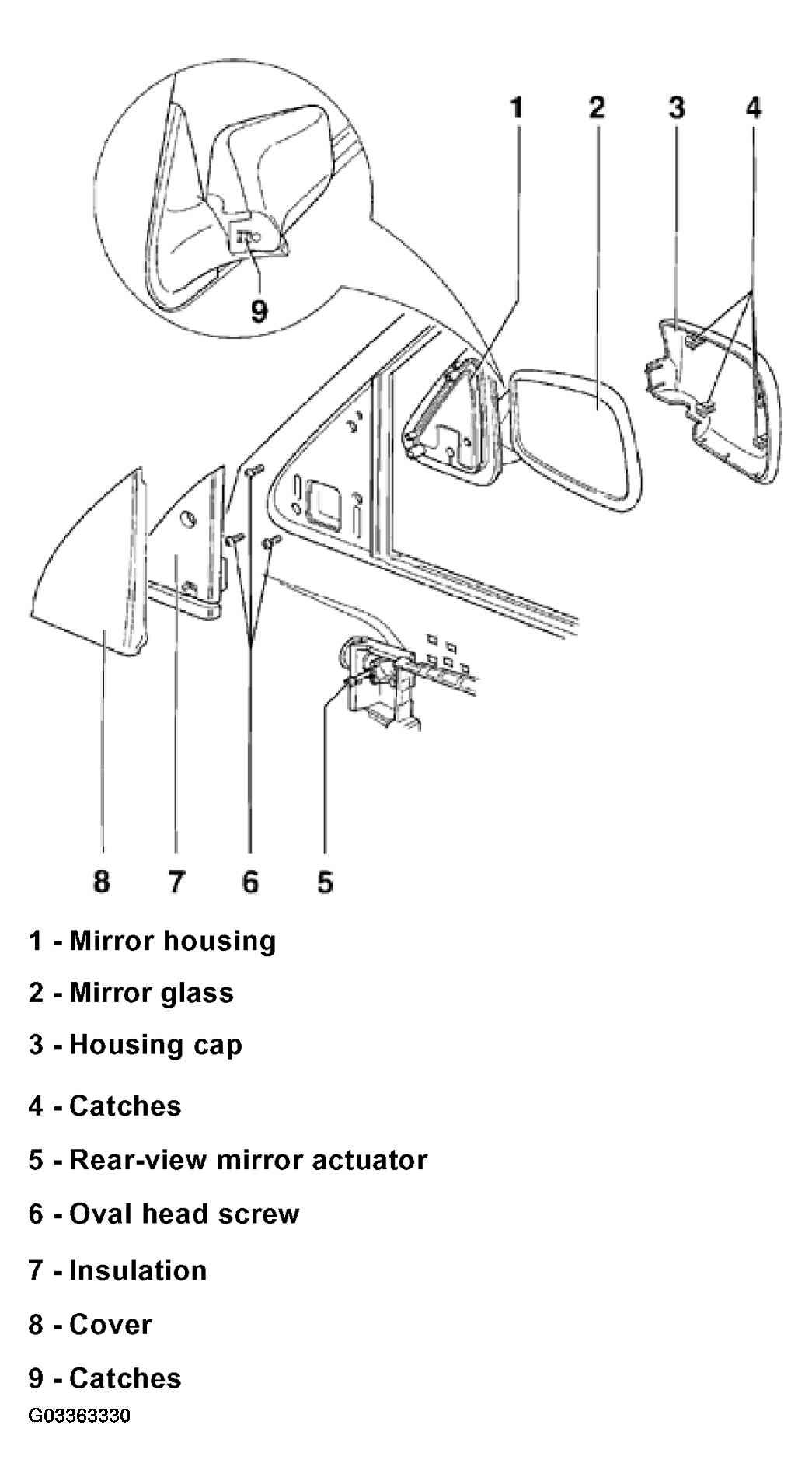

The following list refers to Fig 1.
- - Mirror housing
- - Mirror glass
- Clipped in: use special tool 80-200 (assembly lever) to remove
- - Housing cap
- Material: ABS
- Removing: Remove mirror glass and lift mirror housing toward door window. Squeeze catches -4- and -9- and pull off housing cap
- - Catches
- - Rear-view mirror actuator
- - Oval head screw
- 2 N.m (17 in lb)
- - Insulation
- - Cover
- - Catches
