Removing unbroken window
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Remove side trim, refer to SIDE PANEL TRIM, REMOVING AND INSTALLING .
- Remove side support for luggage compartment cover, refer to LUGGAGE COMPARTMENT COVER .
- Loosen C-pillar trim, refer to C-PILLAR TRIM, UPPER, REMOVING AND INSTALLING .
- Insert plastic wedge between sealing lip and window flange.
- Loosen sealing lip from window flange all around and spray in cleaning solution D 009 401 04 (as substitute for lubricant).

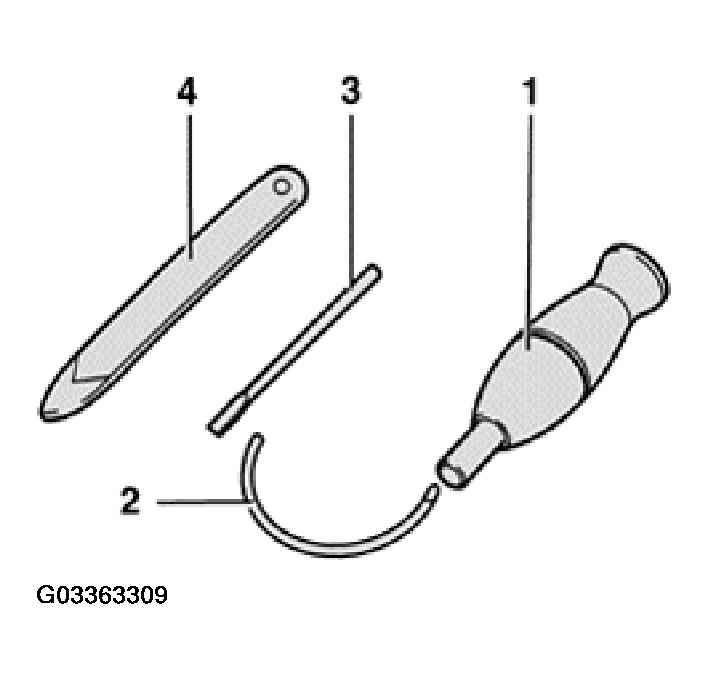

- With help of handle -1-, guide trimming needle -2- under sealing lip and puncture through adhesive bead.NOTE: The trimming needle must be guided as close as possible to the window.
- Remove handle and pass cutting thread through eye of needle.
- Pull cutting thread toward inside (use pliers and gloves).

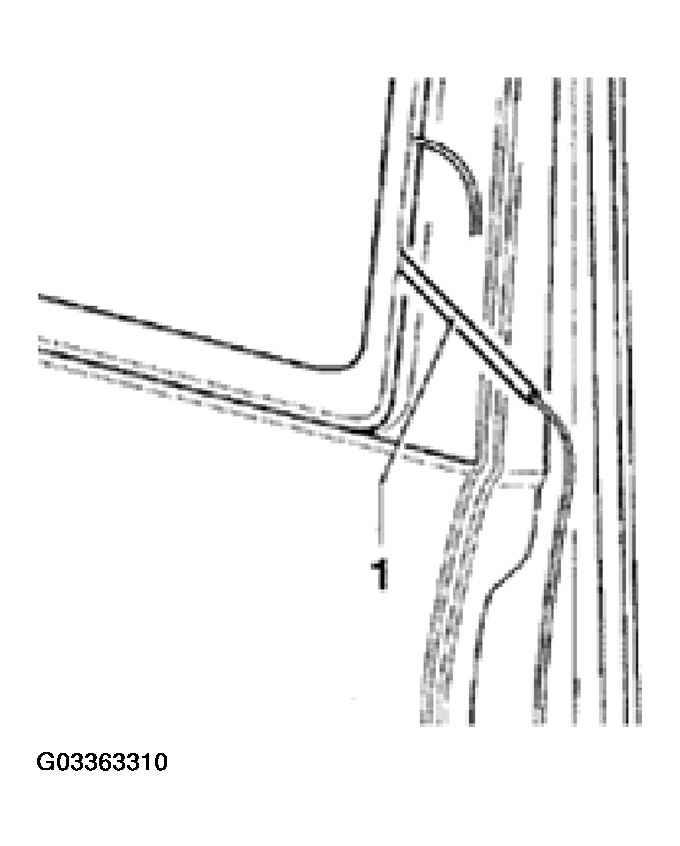

- Guide cutting thread between lip and window flange with help from tube -1-.
If cutting thread should break, cutting wire can also be used.
- If gap is too small, guide cutting thread on outside and press under lip with a plastic wedge.
- Place cutting thread around side window.

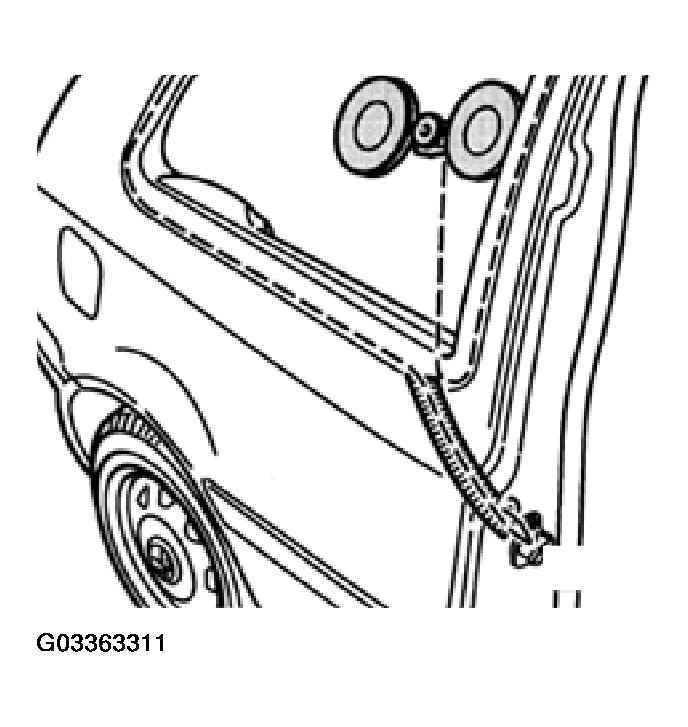

- Secure outer end of thread on door latch striker pin (apply layer of fabric-reinforced adhesive tape along thread path to protect finish).
- Secure inner end of thread on VAG1654 winding device and cut out window by moving winding device as necessary.
- Press cutting thread against window glass with plastic wedge during cutting process, in order to have access at window flange.
