Bonded side window, assembly overview
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

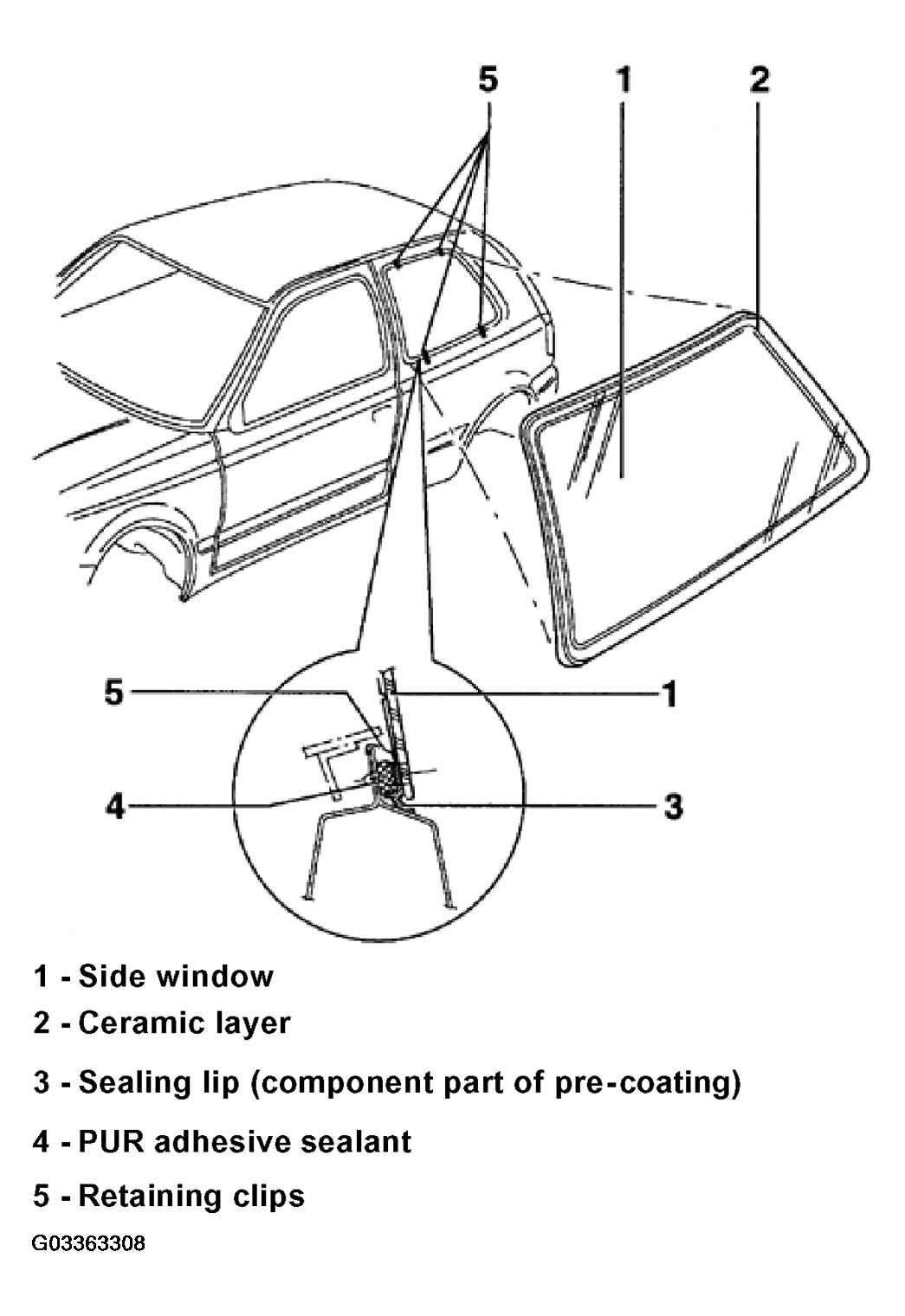

The following list refers to Fig 1
.
- - Side window
- Removing (window unbroken), refer to BONDED SIDE WINDOW, REMOVING .
- Removing (window broken), refer to BONDED REAR WINDOW BROKEN, REMOVING AND INSTALLING .
- Installing, refer to REMOVING BROKEN WINDOW .
- - Ceramic layer
- - Sealing lip (component part of pre-coating)
- - PUR adhesive sealant
- Cross section of bead
- Width = 7 mm (0.28 in.)
- Height = 12 mm (0.47 in.) (including pre-coating, residual material on window glass and flange)
- - Retaining clips
