Bonded rear window unbroken, removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always wear protective goggles and leather gloves when removing and installing windshield.
- Remove rear wiper arm (M8 hexagon nut).
Tightening torque: 15 N.m (11 ft lb)
- With plastic wedge loosen sealing lip from window flange all around, and spray in cleaning solution D 009 401 04 (as substitute for lubricant).

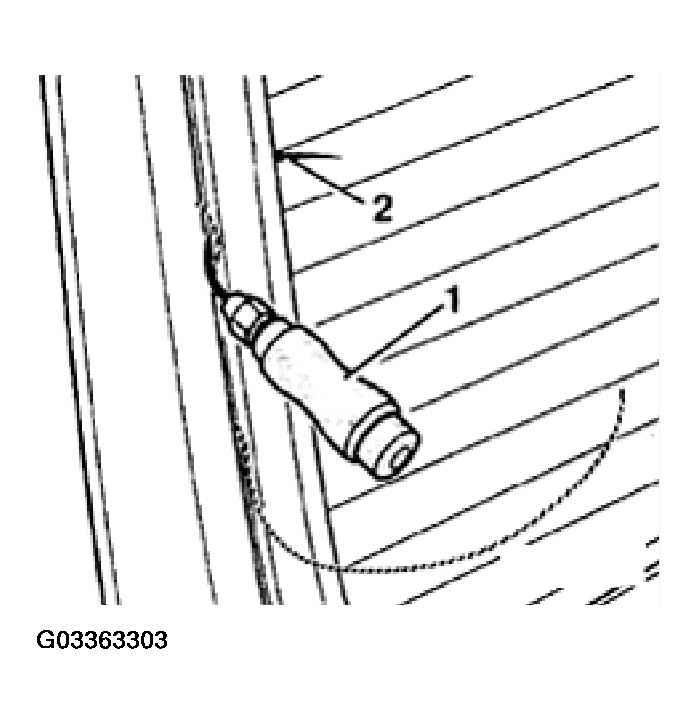

- With help of handle -1-, guide trimming needle -2- under sealing lip and puncture through adhesive bead (use side areas).
NOTE: The trimming needle must be guided as close to the window as possible (do not damage heater element).
- Remove handle and pass cutting thread through eye of needle.
- Pull cutting thread towards inside (use pliers and gloves).

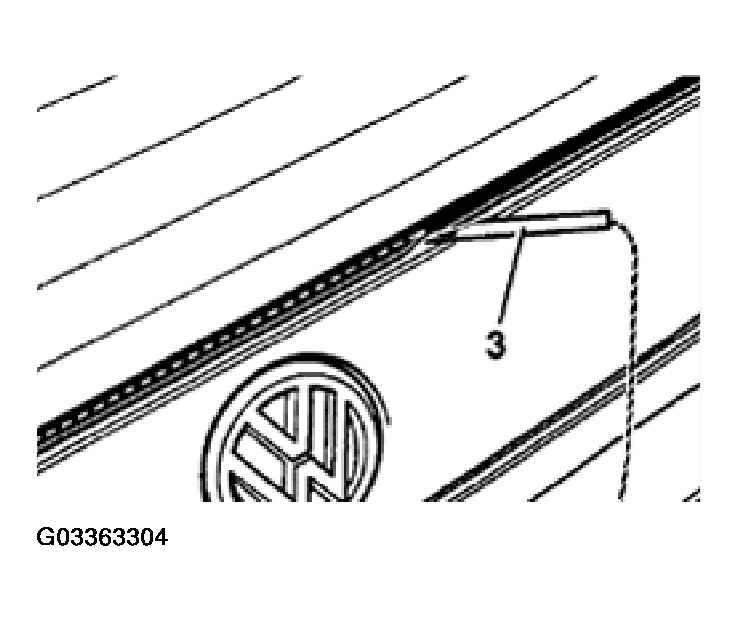

- Guide cutting thread between sealing lip and window flange with help of tube -3- (cutting wire may also be used).
- If gap is too small, guide cutting thread on outside and push under lip with a plastic wedge.

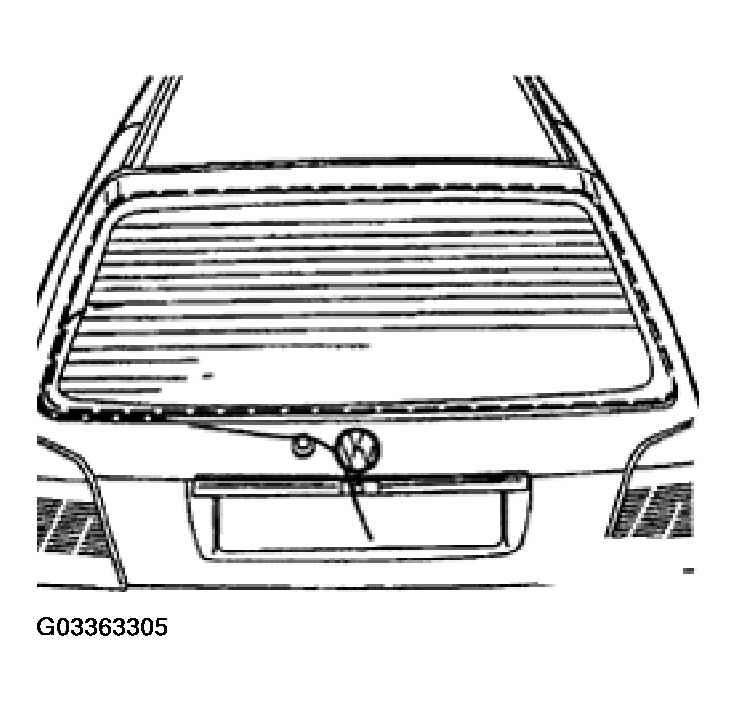

- Place cutting thread around rear window as shown.NOTE: Press in cutting thread deep enough in order to avoid damaging the sealing lip and/or spacing lip.
- Secure outer end of thread to window wiper shaft, or pull end of thread toward inside and counterhold with VAG1351/1 pulling handle.
- Disconnect electrical connectors for heated rear window and press connecting terminals onto window
- Cover inside of window flange -3- with fabric-reinforced adhesive tape.
- Secure inner end of thread on winding device.

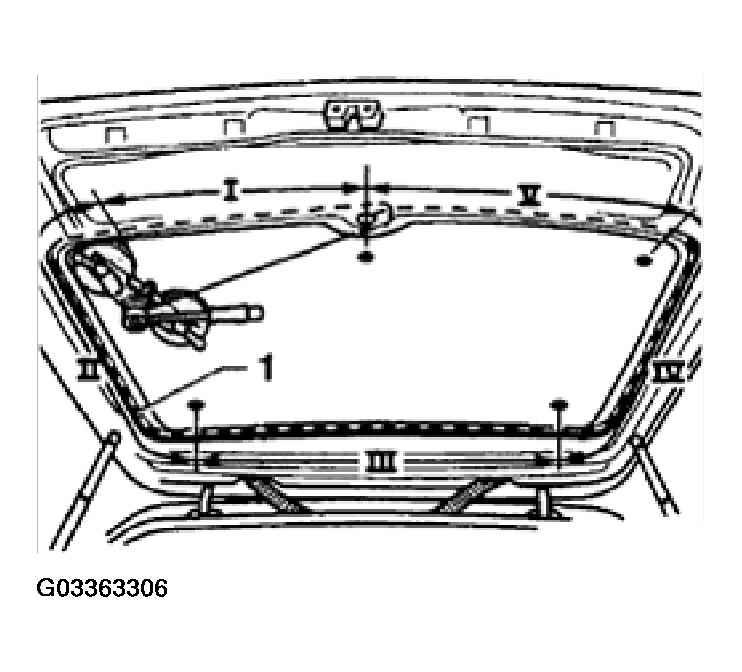

- Attach VAG1654 winding device in position -I-.
- Move winding device to position -II-, position -III- and so on as necessary and cut out window glass.
- Press cutting thread against window glass using plastic wedge during cutting process, in order to have clearance at window flange.
Fig 4: Covering Inside Of Window Flange With Fabric-Reinforced Adhesive Tape (Rear Window - Unbroken)
