Impact padding, installing (vehicles with side airbag, 2 door)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

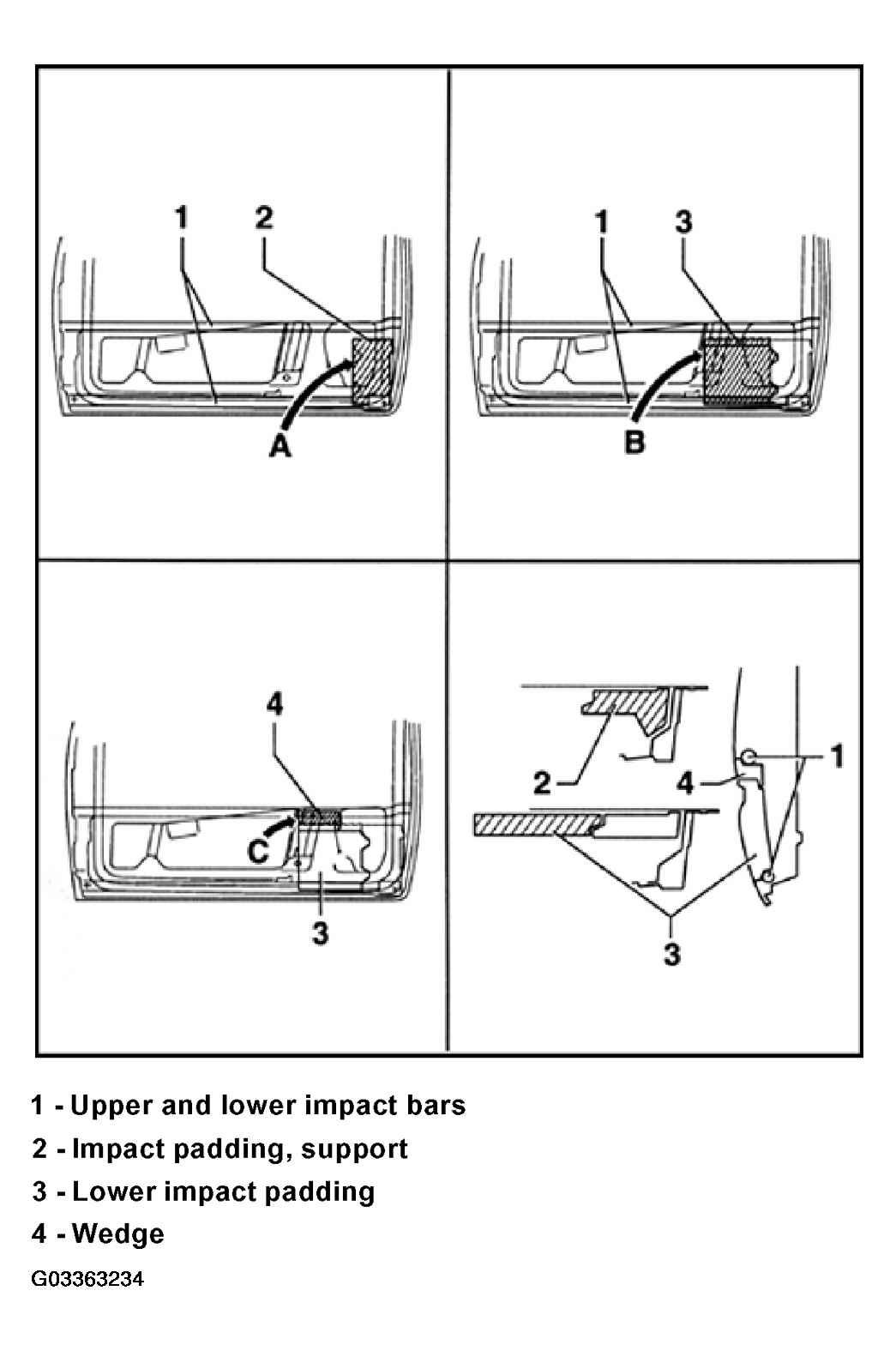

The following list refers to Fig 1
.
- - Upper and lower impact bars
- - Impact padding, support
- To install, fit onto impact bar and slide to rear onto stop (lock reinforcement)
- - Lower impact padding
- Remove cover from adhesive
- If impact padding had been removed and padding will no longer stick to door skin, this can be reworked with butyl cord (AKL 450 005 05)
- Fit impact padding onto lower impact bar and slide to rear support - 2 -.
- - Wedge
- Secure wedge between upper impact bar and lower impact padding
