Front door (vehicles with side airbags, 2- and 4-door)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

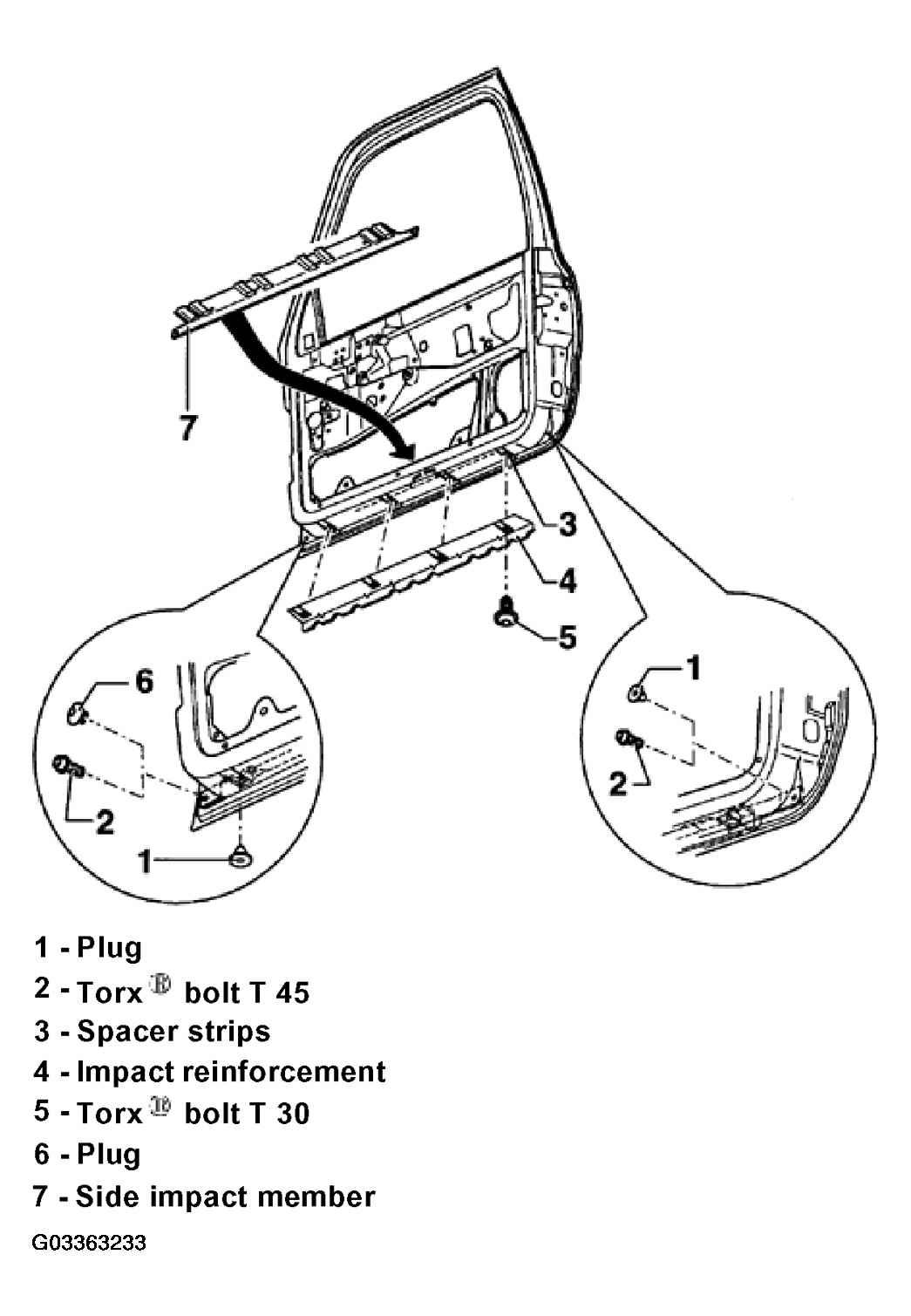

The following list refers to Fig 1
.
- - Plug
- Vehicles without side airbags
- - Torx(R) bolt T 45
- Vehicle with side airbags
- 23 N.m (17 ft lb)
- - Spacer strips
- - Impact reinforcement
- - Torx(R) bolt T 30
- 10 N.m (7 ft lb)
- - Plug
- Vehicles without side airbag
- - Side impact member
