Door, adjustment: Adjusting

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Open door and loosen bolts -1- (Torx(R) T45) on upper or lower hinges using 3320 door adjusting wrench (-2-).

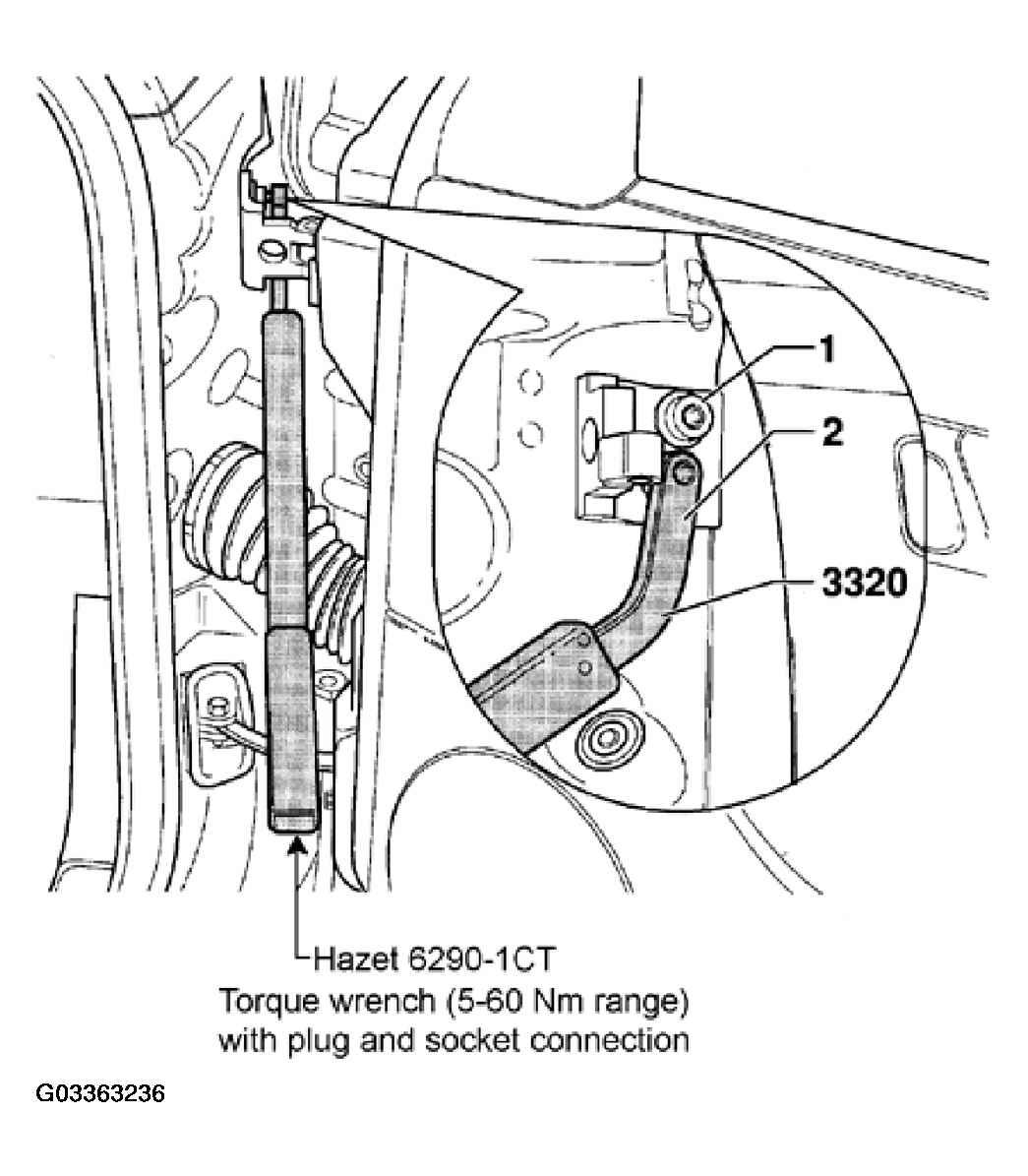

Fig 1: Loosening Bolts With Door Adjusting Wrench

Adjust door (with help from second technician) as necessary.
- Move door within oversize holes to adjust
- Tighten bolts to 34 N.m (25 ft lb)
Check adjustment and repeat if necessary.
NOTE: 3320 door adjusting wrench (-2-) also requires torque wrench with plug and socket connection Hazet 6290-1CT (arrow).
After correcting door adjustment, carry out corrosion protection measures and touch up paint in hinge area as necessary.
