Rear lid latch actuator, removing and installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear lid trim.
Handle is fastened with Phillips-head screw.
- Disconnect locking rod from rear lid latch push button, and disconnect bi-pressure hose.

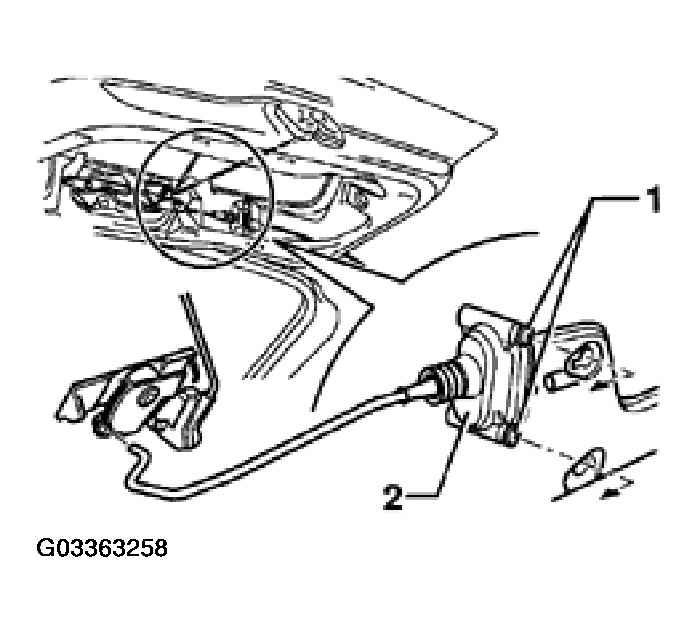

- Remove Phillips-head screws -1- and pull actuator -2- with locking rod out of rear lid.
