From M.Y. 1996 & up

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The door latch switch -E150- (-A-) allows all door latches to be locked or unlocked from inside the vehicle.

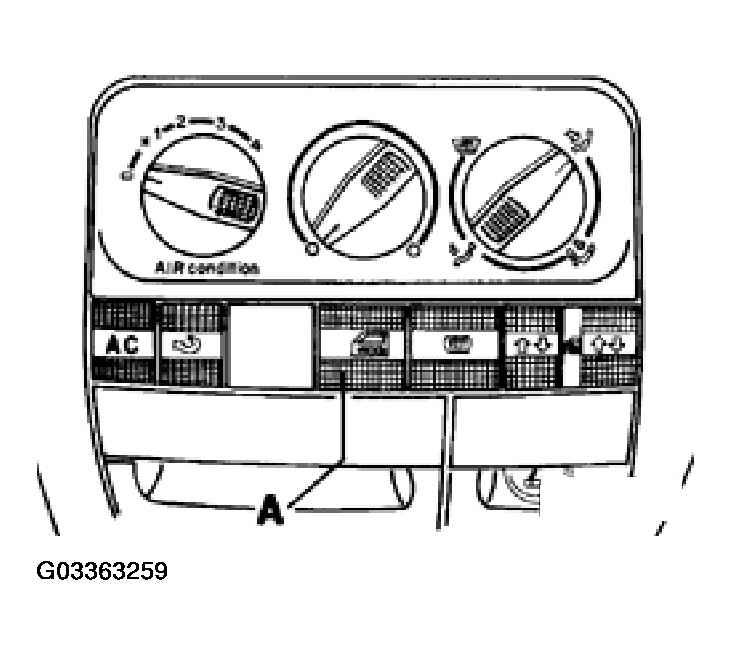

Fig 1: Identifying Door Lock Switch In Instrument Panel (From M.Y. 1996 & Up)
G03363259

Pressing the lower part of the switch locks all the doors, and pressing the upper part unlocks them.

NOTE:
  • With the door lock switch on the instrument panel, the selective central locking function operates as before (see Owner's Manual).
  • If the driver's door is open when depressing the latch knob or pressing the lower part of the lock/unlock switch, that door will not be locked.
