Couplings and junctions for hose connections
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Updated couplings and junctions have gradually been introduced for the actuators and the bi-pressure pump.

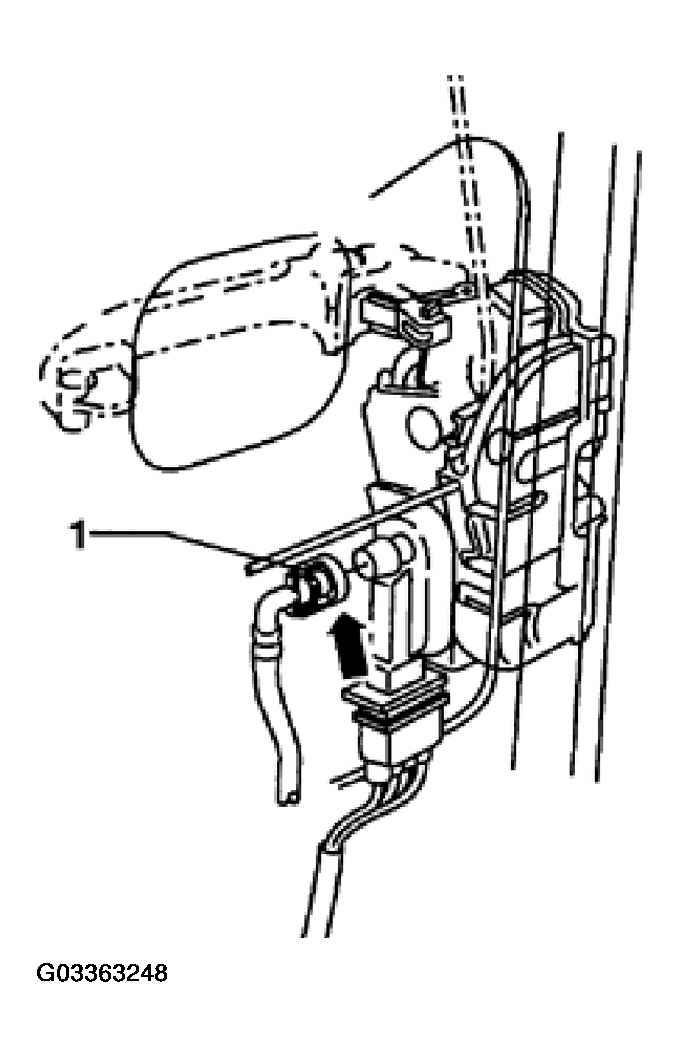

- Release coupling -1- by pressing ring (arrow) together.
Check that coupling is correctly engaged when reconnecting

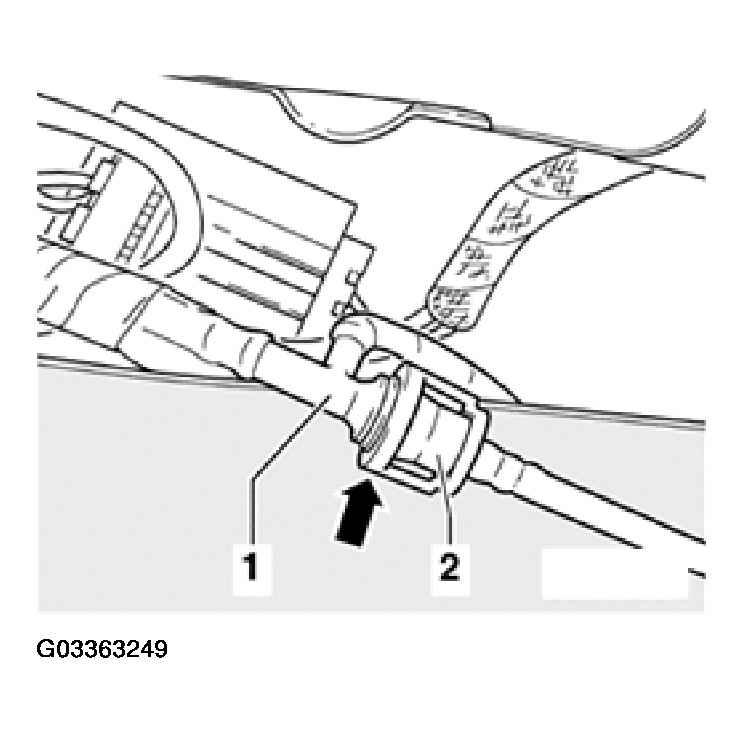

Junction -1- is also connected via these couplings.
- Release coupling -1- by pressing ring (arrow) together.
Check that coupling is correctly engaged when reconnecting
