Output shaft applications

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vehicles with 2.0 liter, 85 kW (115 hp) engine have output shaft with increased diameter for hub splines of 4th gear and an additional circlip toward 3rd gear.

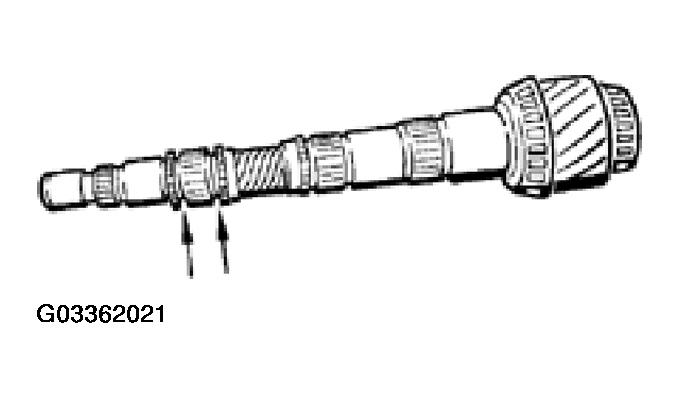

Output shaft for vehicles with 2.0 liter, 85 kW (115 hp) engine with two circlips (arrows) for 4th gear.

Fig 1: Identifying Output Shaft For Vehicles With 2.0 Liter
G03362021Courtesy of VOLKSWAGEN OF AMERICA, INC.

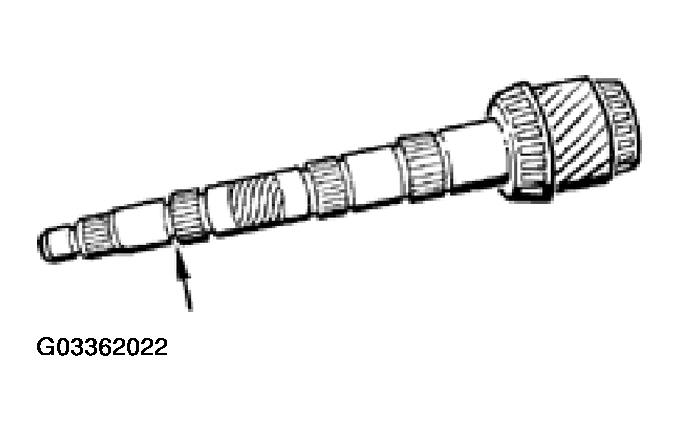

Output shaft for all other vehicles with one circlip (arrow) for 4th gear.

Fig 2: Identifying Output Shaft For All Other Vehicles
G03362022Courtesy of VOLKSWAGEN OF AMERICA, INC.
