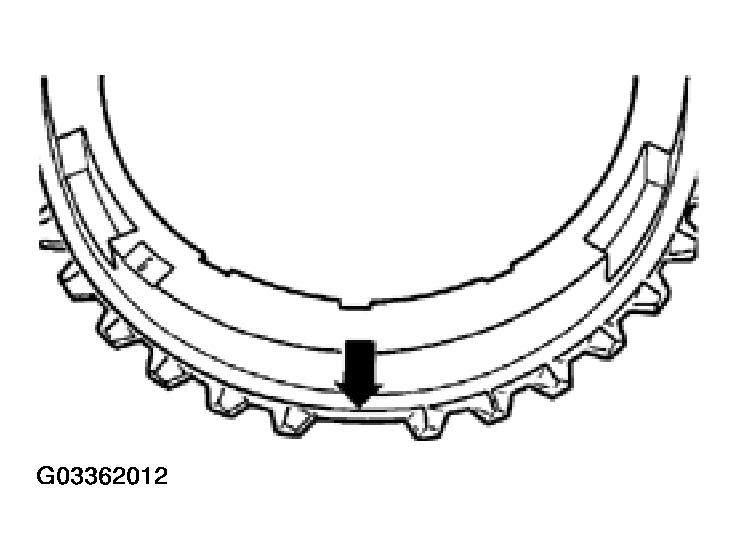

Marking of 1st gear synchronizer ring with 110° tooth angle
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Identification: one tooth missing (arrow) every 3 teeth
- To be installed on 1st gear only
CAUTION:
- When replacing synchronizer rings, always refer to parts catalog microfiche for the correct parts application.
- Synchronizer rings that are being reused must not be interchanged.
