Extracting outer race of small tapered roller bearing from clutch housing

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
  1. - Internal extractor 37-46 mm, e.g. Kukko 21/6
  2. - Counter support, e.g. Kukko 22/2

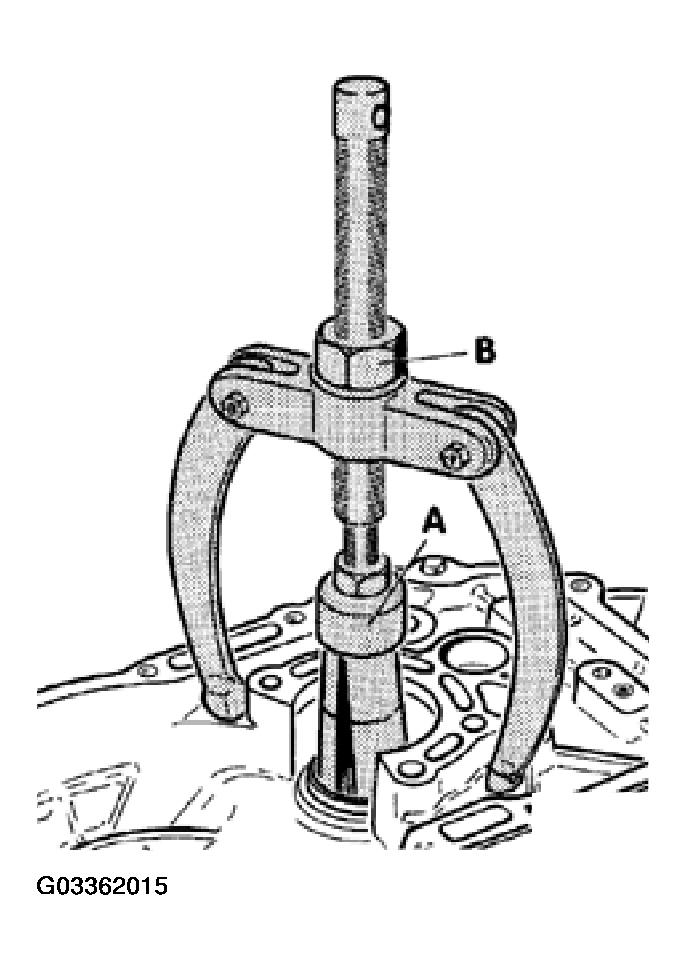

    Fig 1: Extracting Outer Race Of Small Tapered Roller Bearing From Clutch Housing
    G03362015Courtesy of VOLKSWAGEN OF AMERICA, INC.
