Assembling operating sleeve and synchronizer hub for 1st and 2nd gear
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

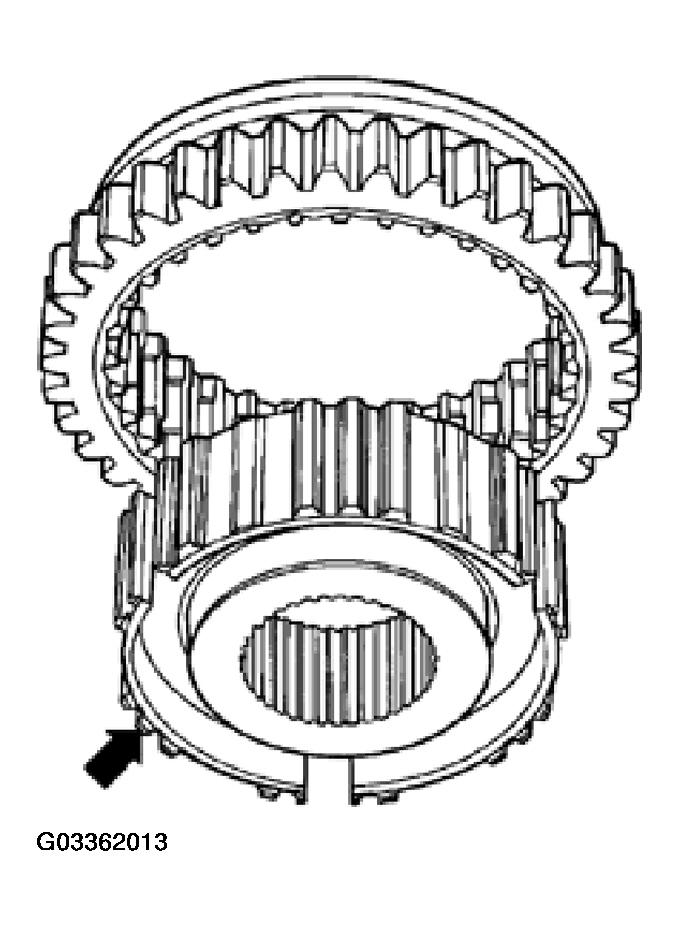

Installation position of synchronizer hub: identification groove on end face (arrow) is toward outer teeth on operating sleeve
- Slide operating sleeve over synchronizer hub.
Recesses for locking keys on synchronizer hub and operating sleeve must be aligned
