Installation position of 3rd/4th gear operating sleeve and synchronizer hub

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Operating sleeve and synchronizer hub must be installed with chamfer on inner splines of hub (arrow) toward 3rd gear.

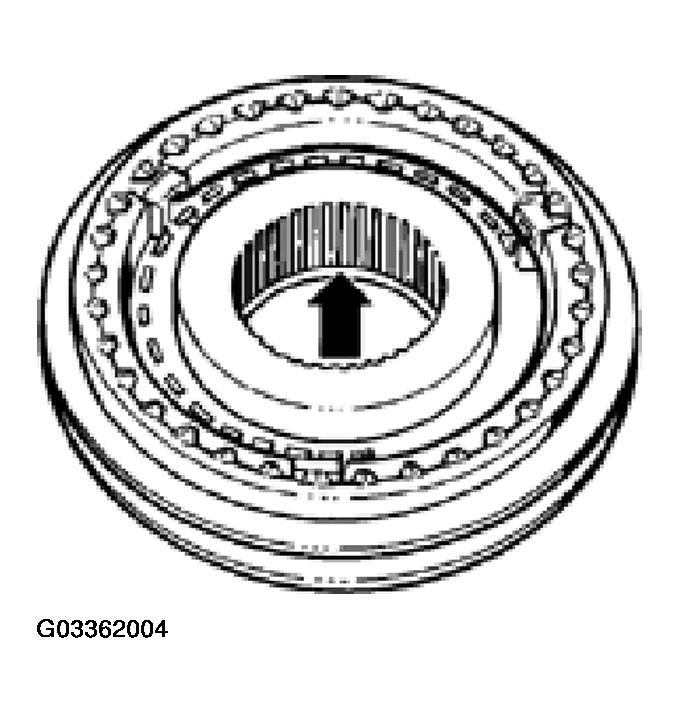

Fig 1: Identifying Installation Position Of 3rd/4th Gear Operating Sleeve And Synchronizer hub
G03362004Courtesy of VOLKSWAGEN OF AMERICA, INC.
