Extracting bushing for clutch pushrod

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

A - Internal extractor, e.g. Kukko 12/2, 8-12mm

Use threaded adapter from internal support, Kukko 22/1 or equivalent, to connect internal extractor and VW 771/15 threaded piece.

NOTE: When the input shaft is installed, use counter support, e.g. Kukko 22/1 and VW 512 thrust pad to remove the bushing.

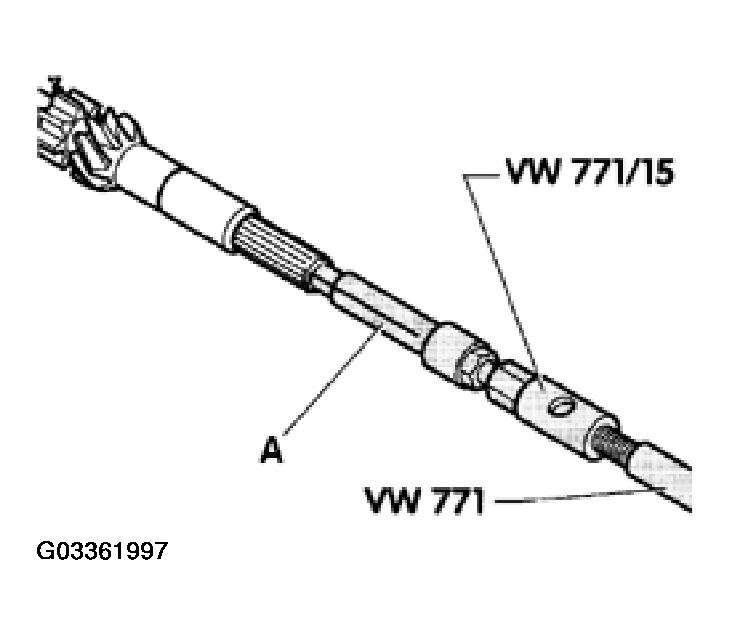

Fig 1: Extracting Bushing For Clutch Pushrod

Courtesy of VOLKSWAGEN OF AMERICA, INC.
