Transmission gear oil level, checking
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Transmission gear oil specification: see CODE LETTERS, ENGINE/TRANSMISSION APPLICATIONS, RATIOS, CAPACITIES .
- Turn steering to left to full lock.

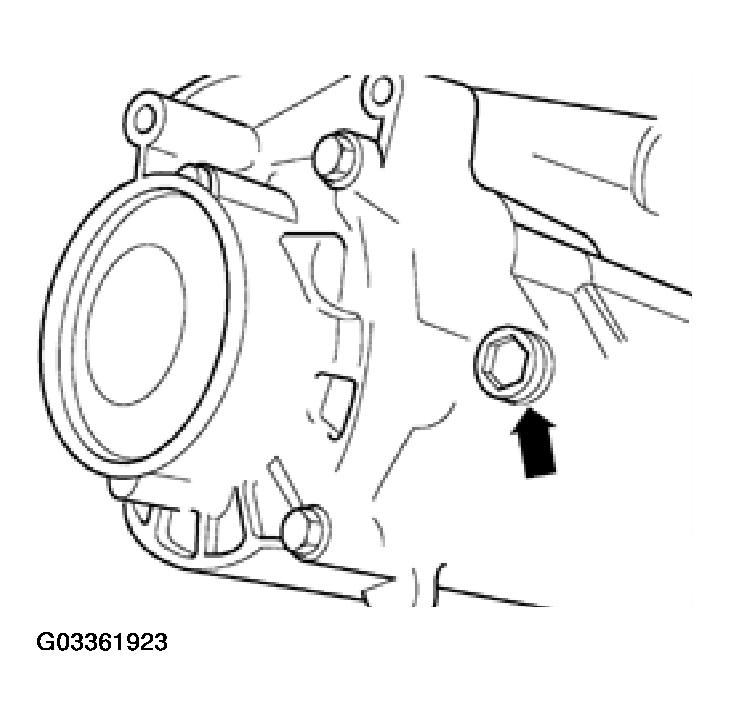

- Remove filler plug (arrow) to check oil level.
Oil level is correct if it is up to lower edge of filler plug hole.
NOTE: When filling the transmission with new oil, add oil through the filler hole until the level reaches the lower edge of the filler hole. - Install filler plug (arrow).
Tightening torque: 25 N.m (18 ft lb)
