Transporting transmission

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Special tool 3336 may be used for transporting the transmission or for setting up the transmission holder 3282.

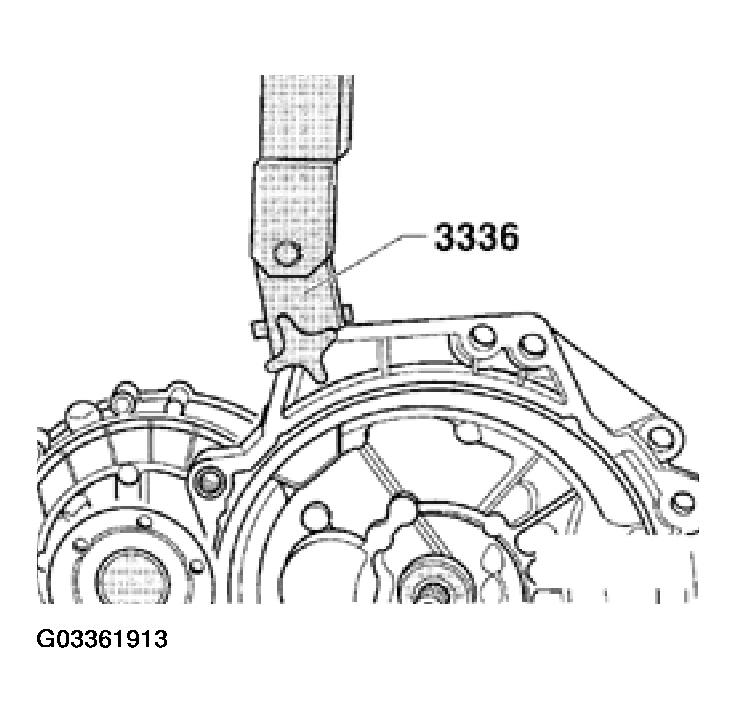

Bolt transmission lifting device 3336 to clutch housing.

Fig 1: Bolting Transmission Lifting Device To Clutch Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

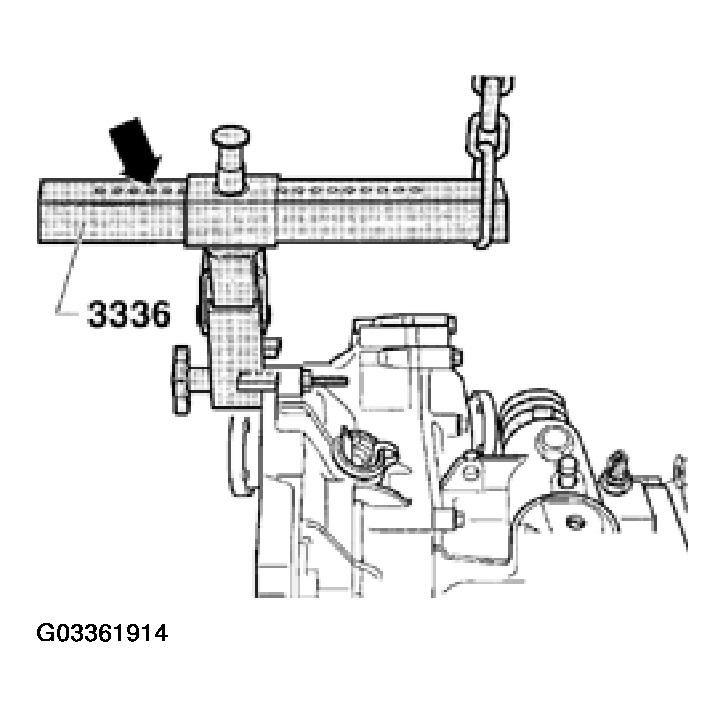

Set support arm on sliding piece with locking pin (arrow).
Number of holes visible: 6

Fig 2: Setting Support Arm On Sliding Piece With Locking Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Transport transmission using workshop crane and lifting device 3336.
