Transmission, removing and installing: Removing: Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting the battery, determine the correct coding for the anti-theft radio.

NOTE: If the transmission or the clutch housing is being replaced, refer to information about clutch housing modifications beginning with transmission number 13 09 3: see INSTALLING .

Disconnect battery Ground (GND) strap.
Disconnect clutch cable, see CLUTCH CABLE, REMOVING AND INSTALLING .

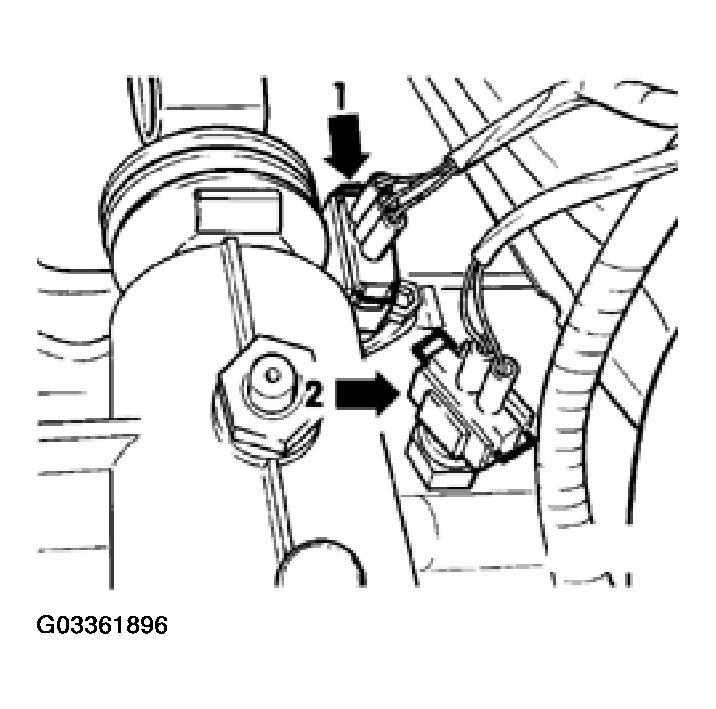

Disconnect Vehicle Speed Sensor (VSS) -G22- (arrow -1-) and back-up light switch -F4- (arrow -2-).

Fig 1: Disconnecting Vehicle Speed Sensor And Back-Up Light Switch
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Disconnect all other electrical connections and Ground (GND) wires from transmission.
Remove upper engine/transmission connecting bolts.

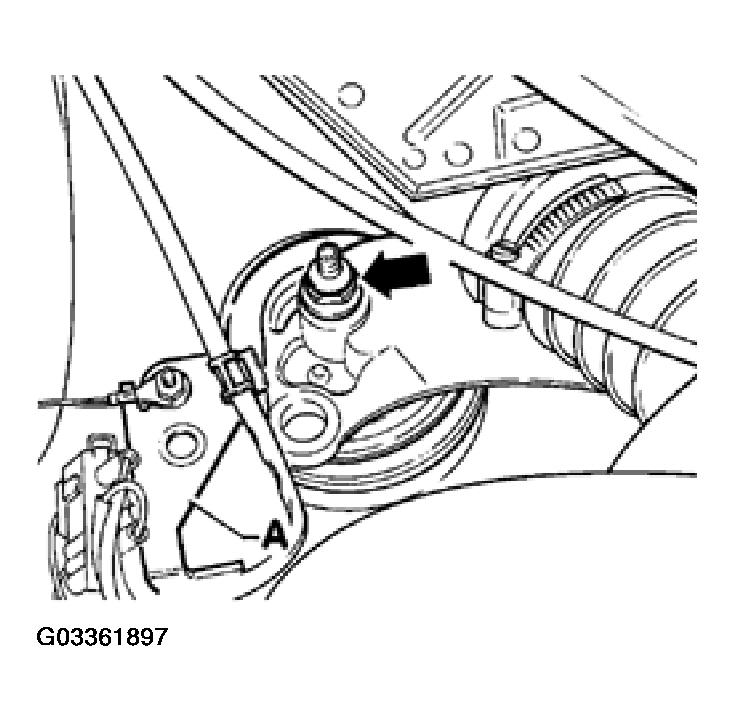

Remove bolt (arrow) from right-side engine assembly support bracket.
Where applicable, remove connector support plate -A-.

Fig 2: Removing Connector Support Plate
Courtesy of VOLKSWAGEN OF AMERICA, INC.
