Cabrio only

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Engine support on body

A - Nuts

B - Bolt

C - Spacers

Under support

NOTE: A spacer plate that combines the spacers in a single unit is available as a replacement part.

Fig 1: Removing Engine Support (Cabrio Only)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Transmission support on body

A - Bolt

B - Nuts

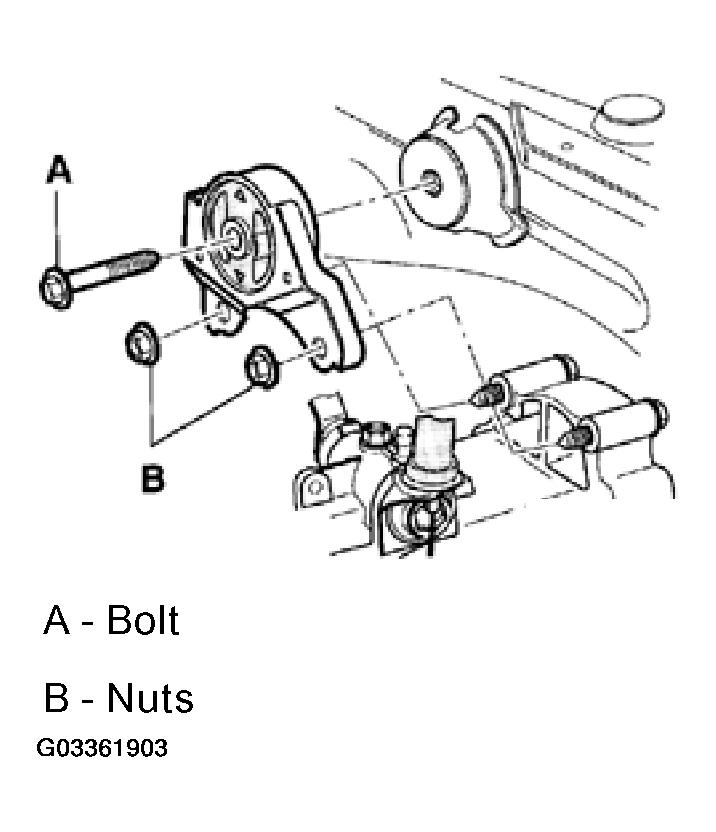

Fig 1: Removing Transmission Support (Cabrio Only)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
