Additional tightening torques for Cabrio only

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Transmission support on body

- Bolt: 50 N.m (37 ft lb)
- Nuts: 50 N.m (37 ft lb)

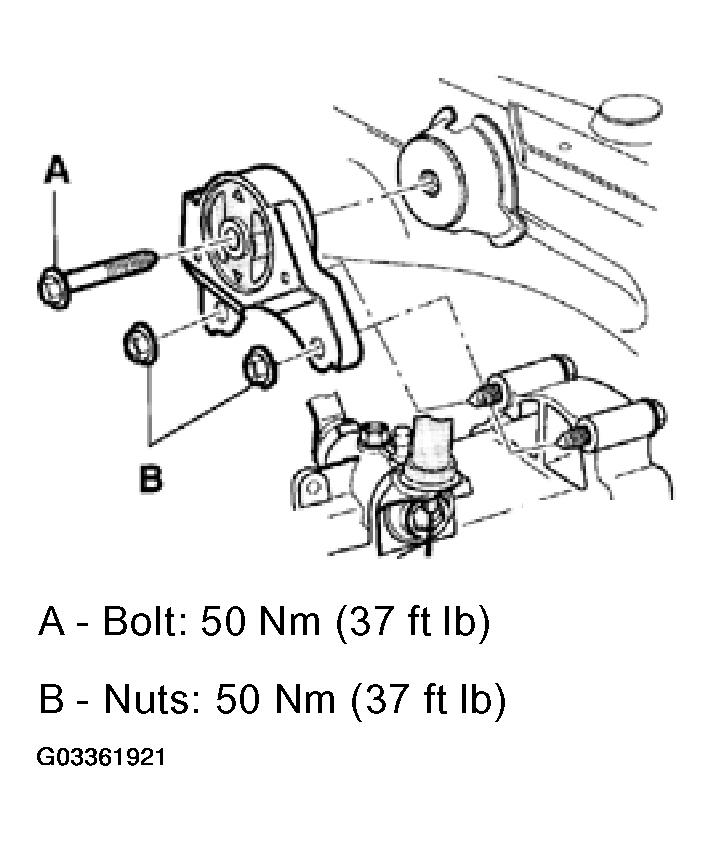

Fig 1: Locating Transmission Support On Body Fasteners (Cabrio Only)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine support on body

- Nuts: 50 N.m (37 ft lb)
- Bolt: 50 N.m (37 ft lb)
- Spacers: under support

NOTE:

Install spacers -C- before installing the support.
A spacer plate that includes the spacers in a single unit is available as a replacement part.

Fig 2: Locating Transmission Support On Body Fasteners (Cabrio Only)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

TORQUE SPECIFICATIONS (CABRIO ONLY)

Component	Torque Specifications
Drive axle to drive flange	45 N.m	(33 ft lb)
Slave cylinder bracket to transmission housing cover	30 N.m	(22 ft lb)
