Transmission housing cover and 5th gear, removing and installing
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

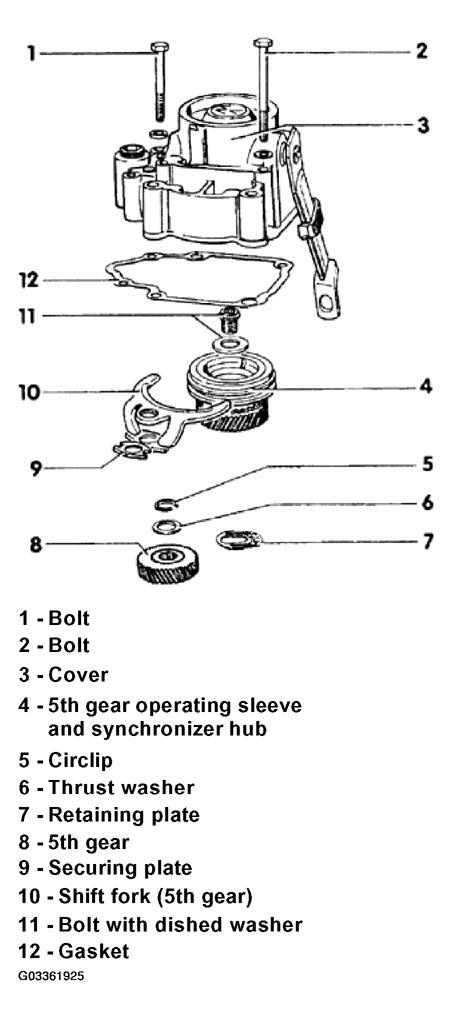

The following list pertains to Fig 1.
- Bolt
- M8 x 62
- 25 N.m (18 ft lb)
- Qty: 2
- Bolt
- M8 x 85
- 25 N.m (18 ft lb)
- Qty: 4
- Cover
- For transmission housing
- Servicing, see TRANSMISSION HOUSING COVER, SERVICING
- 5th gear operating sleeve and synchronizer hub
- With thrust washer
- Disassembling and assembling, see INPUT SHAFT, DISASSEMBLING AND ASSEMBLING
- Circlip
- Always replace
- Must seat securely in groove
- Vehicles with 2.0 liter engine: modified retaining plate for 5th gear (item -7-)
- Thrust washer
- Not installed on vehicles with 2.0 liter, 85 kw (115 hp) engine
- - Retaining plate
- Vehicles with 2.0 liter, 85 kw (115 hp) engine only
- 5th gear
Installation position:
- Vehicles with 2.0 liter, 85 kw (115 hp) engine: circular groove upward
- Other vehicles: groove upward
- Securing plate
- Always replace
- Shift fork (5th gear)
- Adjusting, see TRANSMISSION HOUSING, SERVICING
- Bolt with dished washer
- M17
- Always replace bolt
- 150 N.m (111 ft lb)
- Coat with VW D6 locking fluid
- When loosening or tightening: engage both 5th and reverse gears, see ASSEMBLING
- Installing, see TRANSMISSION HOUSING, SERVICING
- Gasket
- Always replace
