Shift linkage, adjusting: Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Transmission in neutral

Loosen clamp (arrow).

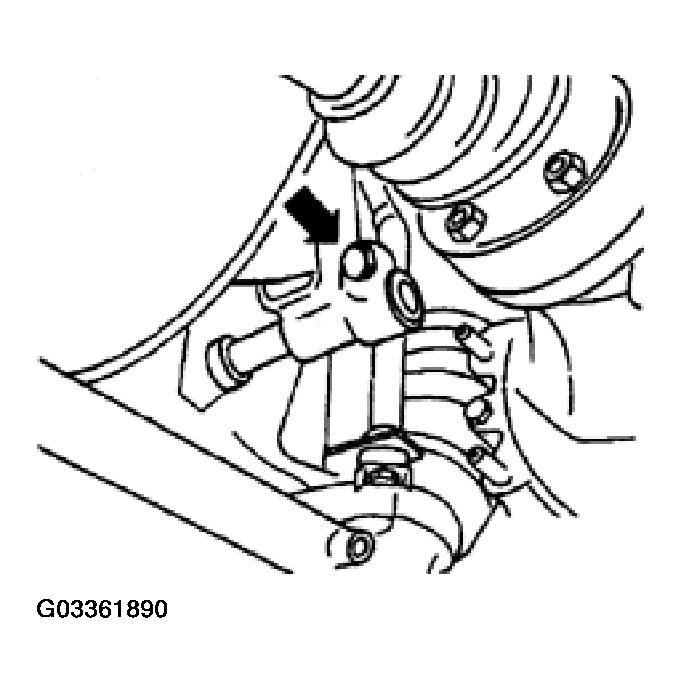

Fig 1: Loosening Selector Rod Clamp
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Joint between selector rod and selector lever must move easily
Remove shift knob, boot, and frame: see SHIFT BOOT, INSTALLING .
Insert gauge 3104.
Gauge must not jam

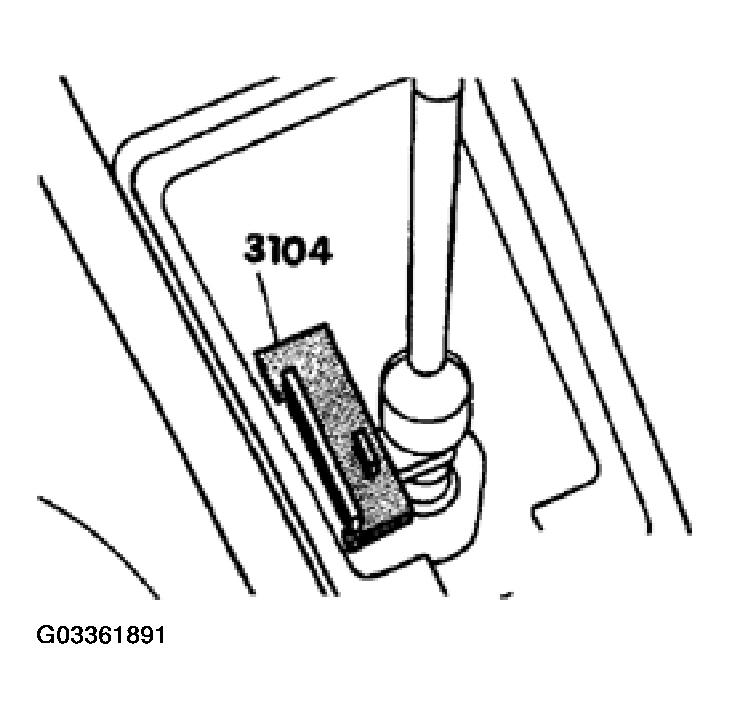

Fig 2: Inserting 3104 Gauge To Align Selector Rod/Selector Lever
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Align selector rod/selector lever (with transmission in neutral) and tighten clamp.

CAUTION: DO NOT put components under stress.
