Shift linkage operation and components

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

- Selector rods for vertical plane
- Selector lever moving forward and backward
- Operation shown by arrows - A- (black)
- Selector rods for horizontal plane
- Selector lever moving side to side
- Operation shown by arrows -B- (white)

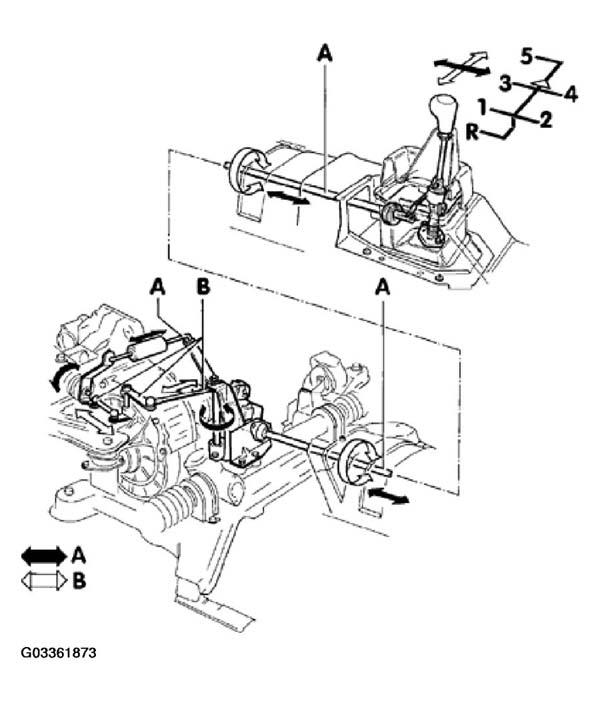

Fig 1: View Of Shift Linkage

Courtesy of VOLKSWAGEN OF AMERICA, INC.

- Selector lever housing and selector lever . See Fig 2.
- Overview, see SELECTOR LEVER HOUSING AND SELECTOR LEVER, OVERVIEW
- Shift linkage relay points on transmission . See Fig 2.
- Overview, see ASSEMBLY OVERVIEW - SHIFT LINKAGE RELAYS ON TRANSMISSION

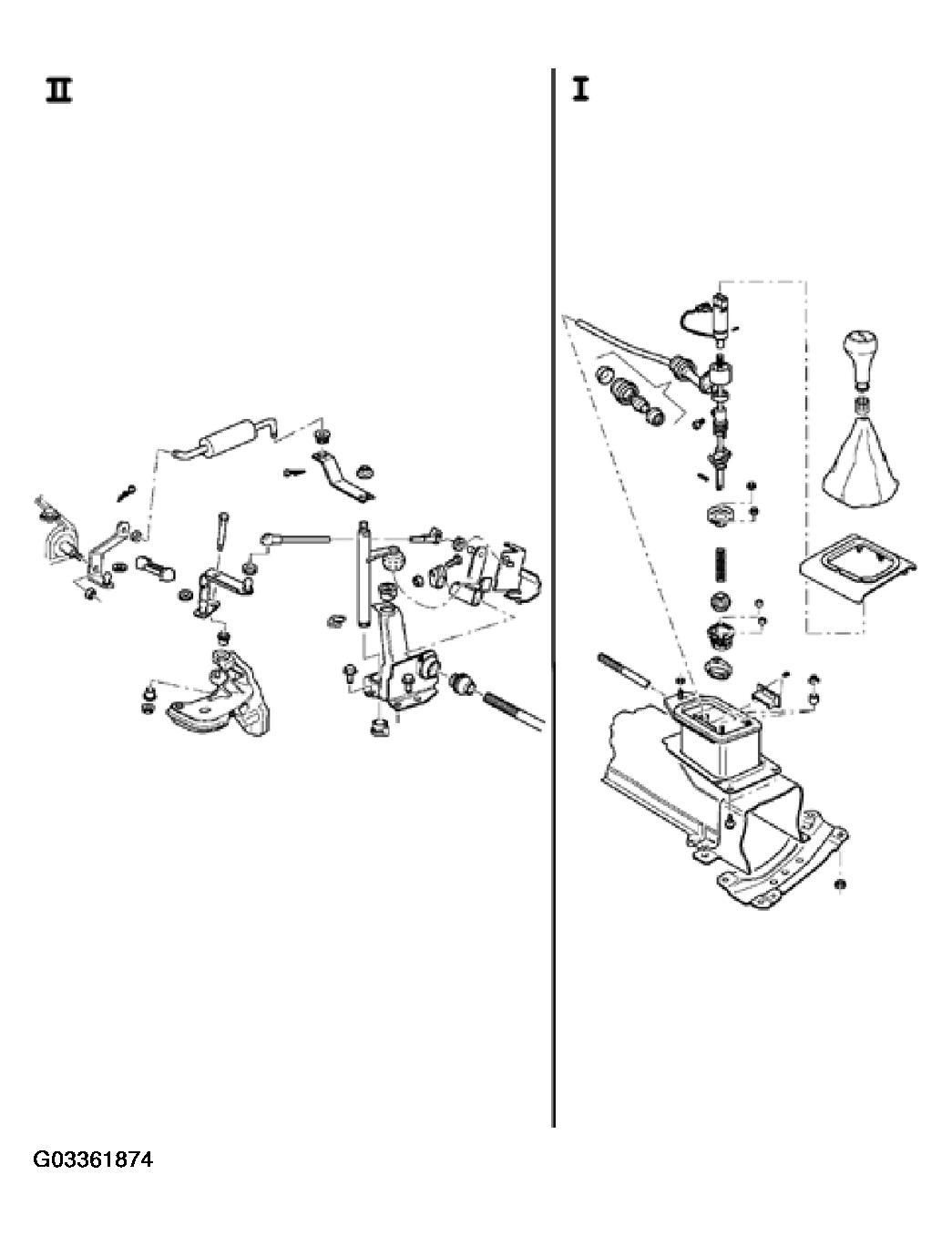

Fig 2: Identifying Selector Lever Housing And Selector Lever

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing and installing shift linkage, see SELECTOR LEVER AND SELECTOR ROD, REMOVING AND INSTALLING

Adjusting shift linkage, see SHIFT LINKAGE, ADJUSTING

CAUTION: Before working on the shift linkage:

Obtain the security code for the anti-theft radio.
Disconnect the battery Ground (GND) strap.

NOTE:

Lubricate all joints and friction surfaces with MoS2 grease.
