Selector lever housing and selector lever, overview: Notes
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

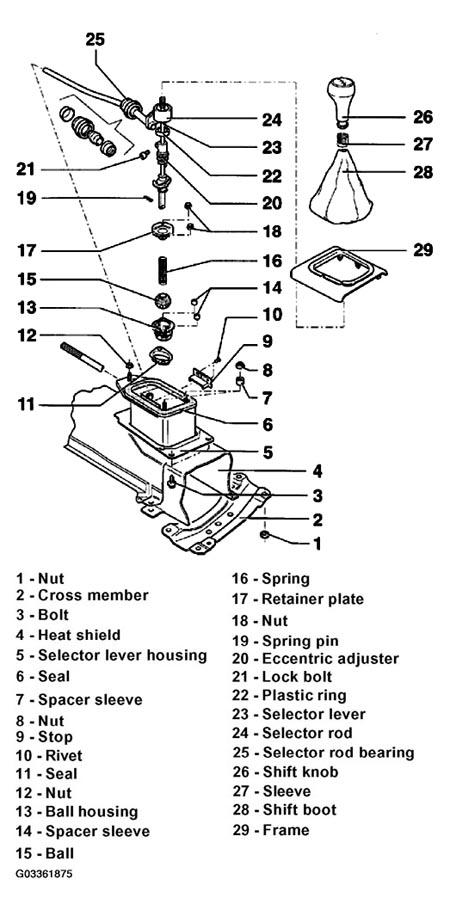

The following list pertains to Fig 1.
- Nut
- Self-locking
- Always replace
- 15 N.m (11 ft lb)
- Cross member
- Bolt
- 25 N.m (18 ft lb)
- Selector lever housing to body
- Heat shield
- Front and rear
- Selector lever housing
- Before removing, remove cross member -2-, three way catalytic converter, and front heat shield -4-
- Seal
- Bonded to selector lever housing
- Spacer sleeve
- Between center console and selector lever housing
- Nut
- For center console
- Stop
- Rivet
- To secure stop
- Seal
- For ball housing
- Nut
- 25 N.m (18 ft lb)
- Selector lever housing to body
- Ball housing
- Spacer sleeve
- Ball
- Spring
- Retainer plate
- Installation position, see Installation of retainer plate
- Nut
- Self-locking
- Always replace
- 10 N.m (7 ft lb)
- Spring pin
- Eccentric adjuster
- Engage in place on selector lever after installing selector lever
- Removing, see Removing eccentric adjuster
- Lock bolt
- 2 N.m (18 in lb)
- Plastic ring
- Attach to eccentric adjuster
- Selector lever
- Check parts catalog microfiche for applications
- Before removing, remove eccentric adjuster, see Removing eccentric adjuster
Assembling before installation:
- Slide on retainer plate -17-, spring -16- and ball -15-.
- Secure with spring pin -19-.
- Selector rod
- Remove from selector lever housing together with selector lever, see Extracting selector rod together with selector lever from selector lever housing
- Selector rod bearing
- When installing, make sure that two spherical halves do not separate
- Shift knob
- Check parts catalog microfiche for applications
- Join to shift boot -28-, see SHIFT BOOT, INSTALLING
- Sleeve
- Check parts catalog microfiche for applications
- Shift boot
- Check parts catalog microfiche for applications
- Remove from frame -29-
- Frame
