Gaskets and seals

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Always replace O-rings.
Always replace paper gaskets.
Thoroughly clean all mating surfaces before installation.
Always replace radial shaft seals.

Before installation of radial shaft seals:

Lightly oil outer circumference and fill space between sealing lips (arrow) with multi-purpose grease.

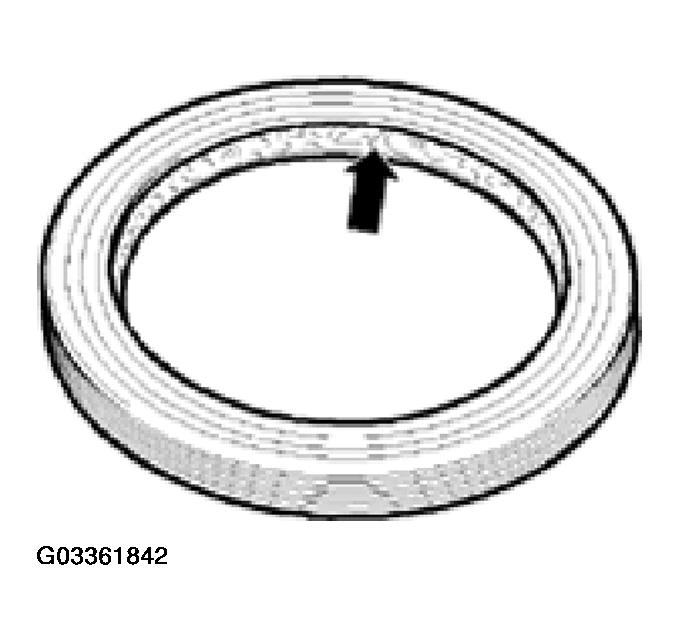

Fig 1: Fill Space Between Sealing Lips (Arrow) With Multi-Purpose Grease
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After installation of radial shaft seals:

Check gear oil level. Top up to lower edge of filler hole, if necessary. Capacities and specifications, see CODE LETTERS, ENGINE/TRANSMISSION APPLICATIONS, RATIOS, CAPACITIES .
