Drive flange oil seals, removing and installing: Removing: Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect drive axle at right side of transmission, tilt upward and suspend using wire hook.
Remove left drive axle.
Pry off cover by piercing center of cover using screwdriver.
Remove circlip -A- and dished washer -B- for drive flange.

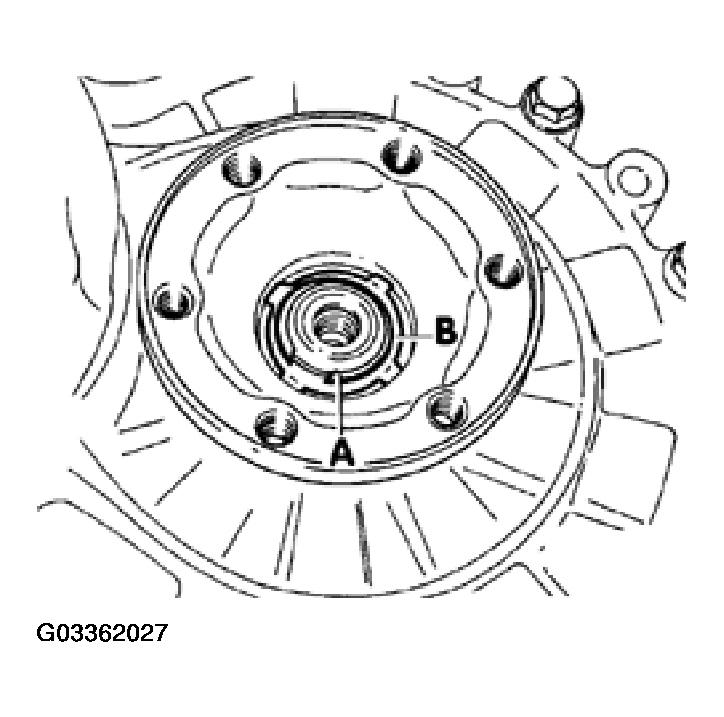

Fig 1: Removing Circlip And Dished Washer For Drive Flange

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove drive flange together with spring.

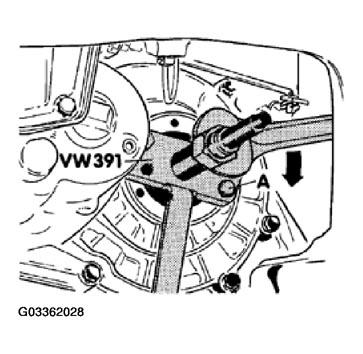

- Attach puller using two hex -head bolts -A- (M8 x 30) installed through elongated holes in puller.
Extract oil seal -A-.

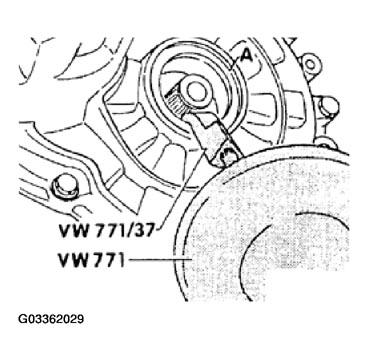

Fig 3: Extracting Oil Seal
Courtesy of VOLKSWAGEN OF AMERICA, INC.
