Sawing off special rivets for removal of differential pinion gears
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

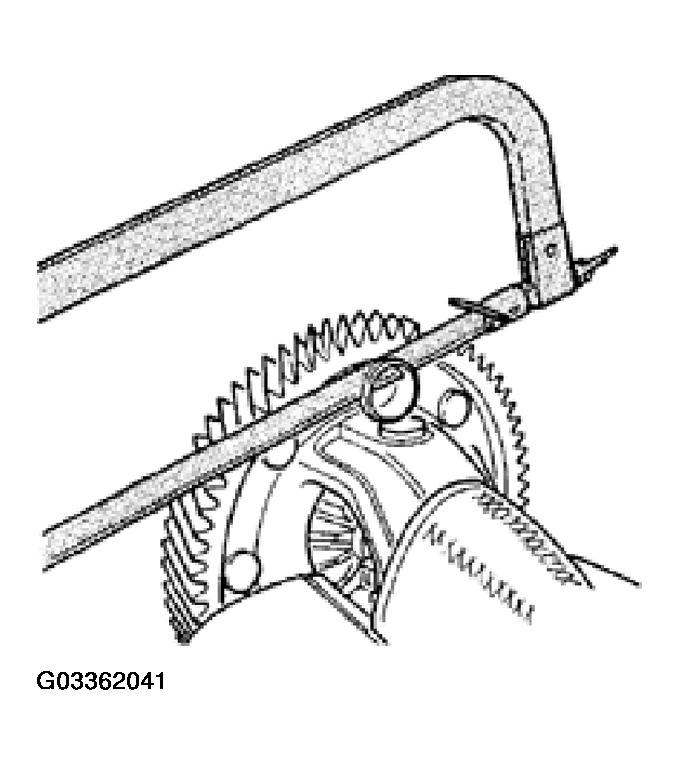

- Saw special rivets off evenly, drive shaft out using drift and swing pinion gears out of housing.
CAUTION:
- Clean the differential before and after sawing.
- Protect the tapered roller bearings from filings.
