Removing tapered roller bearing inner race

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

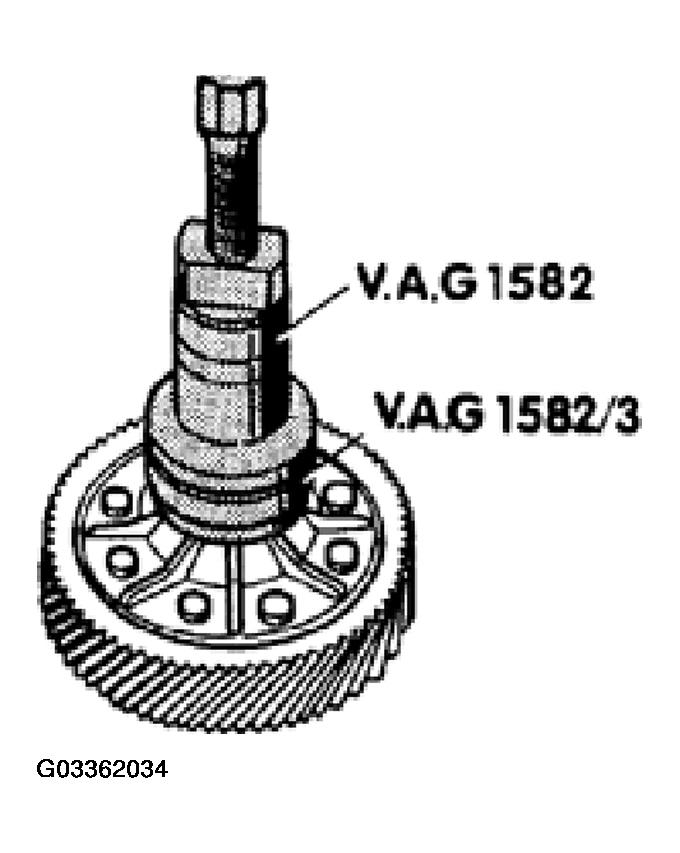

Fig 1: Removing Tapered Roller Bearing Inner Race
G03362034Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE:
  • The procedure for removing the inner races of tapered roller bearings of differential housing is the same on both sides.
  • The tapered roller bearings are destroyed during removal.
