Drilling out rivet heads

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

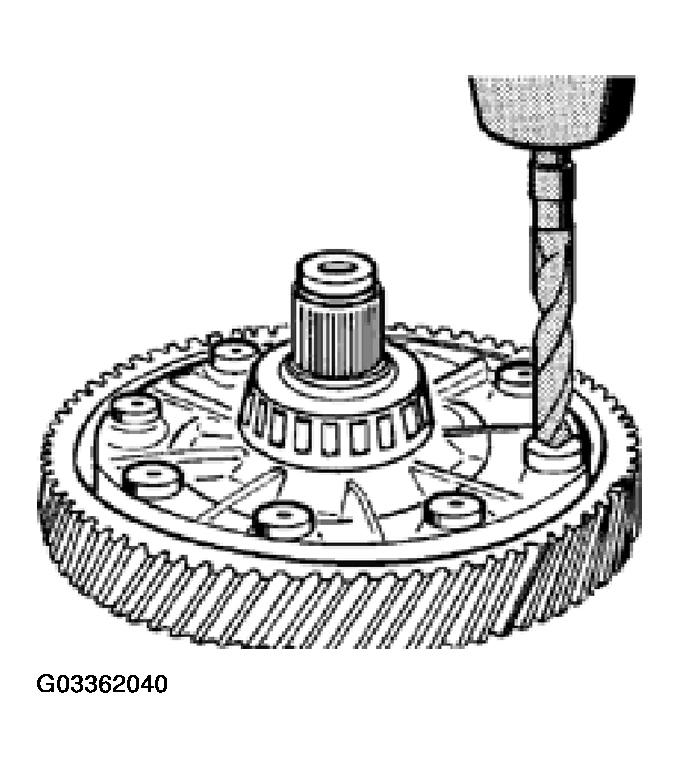

Fig 1: Drilling Out Rivet Heads
G03362040Courtesy of VOLKSWAGEN OF AMERICA, INC.
CAUTION:
  • Clean the differential before and after drilling.
  • Protect the tapered roller bearings from drill filings.
