Attaching final drive gear to differential housing

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Special bolts, washers and nuts - part no. 171 498 088 A (repair kit)

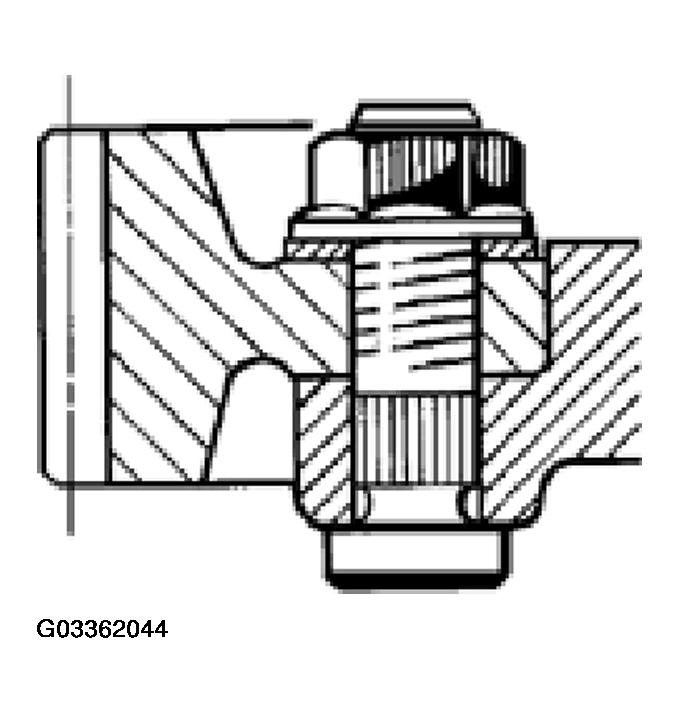

Fig 1: Attaching Final Drive Gear To Differential Housing
G03362044Courtesy of VOLKSWAGEN OF AMERICA, INC.
