Determining thickness of shim S1: Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The thickness of shim S1 is determined by adding:

Specified bearing preload (a constant, 0.40 mm)
The measured axial play (example: 0.90 mm)

Example:

DETERMINING THICKNESS OF SHIM S1 (EXAMPLE)

Measured axial play + Preload (constant)	0.90 mm 0.40 mm
= Thickness of shim S1	1.30 mm

Remove transmission housing and drive out tapered roller bearing outer race.

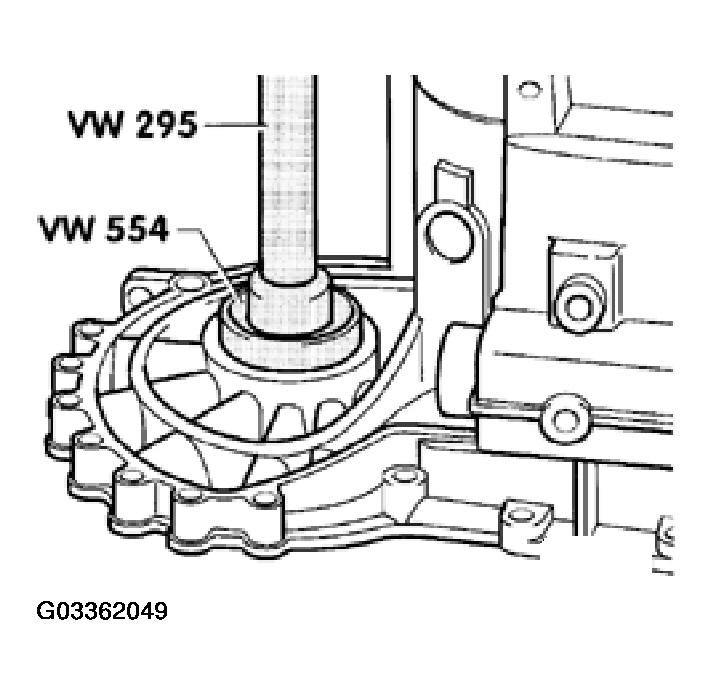

Fig 1: Removing Transmission Housing And Driving Out Tapered Roller Bearing Outer Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Install shim or shims S1 of correct thickness (determined above), installing thickest shim (1.0 mm when possible) first.

NOTE: Varying tolerances make it possible to select the precise shim thickness required.
