Over-center spring, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect clutch cable from transmission, see CLUTCH CABLE, REMOVING AND INSTALLING .
- Remove lower left driver side trim panel, see FRONT DOOR TRIM, REMOVING AND INSTALLING .
- Remove cover from below pedal cluster (foam rubber section remains in vehicle).
- Remove relay panel from retainer.

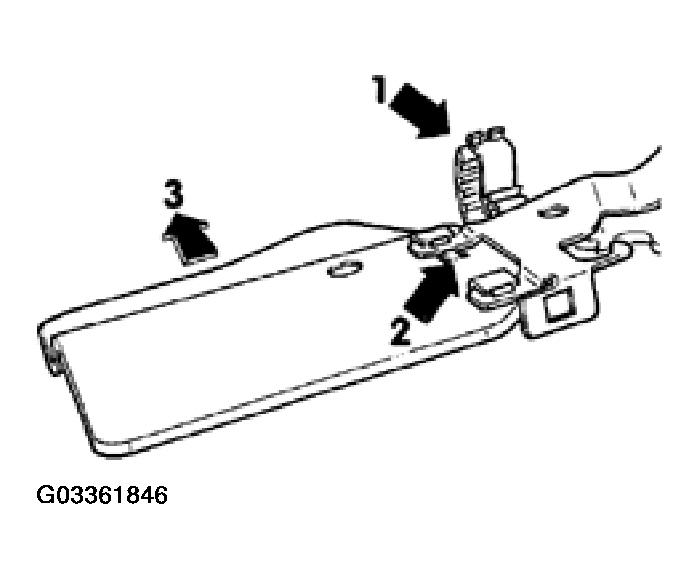

- Remove protective plate from between relay panel and pedal cluster as follows:
- Remove electrical wires from retainer (arrow -1-).
- Press clips (arrow -2-) toward pedal cluster.
- Press protective plate up toward instrument panel (in direction of arrow -3-) until it can be removed from its mounting.
- Remove protective plate, pulling it downward.
CAUTION:
Be careful to not damage the wiring.

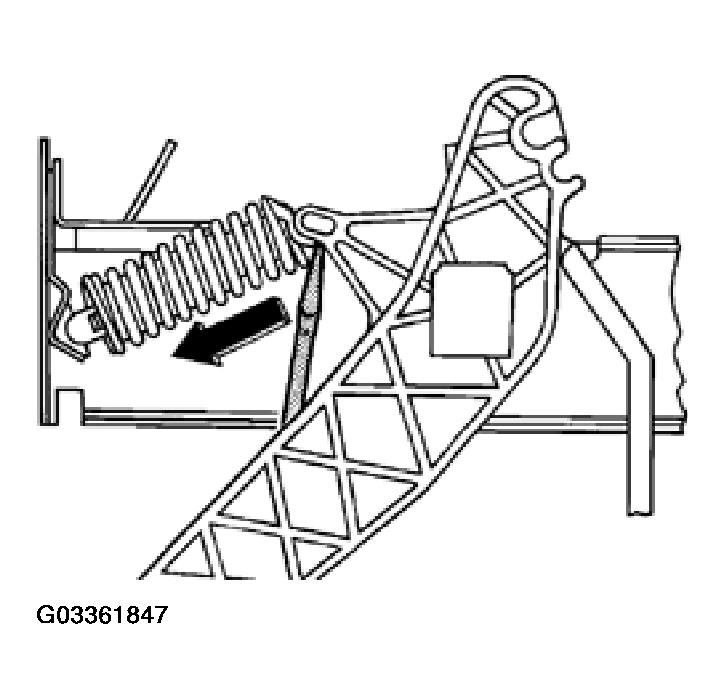

- Insert screwdriver between steering column and clutch pedal and place it on over-center spring.
- Depress clutch pedal and pry over-center spring from pedal in direction indicated by arrow.
