Clutch pedal, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove over-center spring, see OVER-CENTER SPRING, REMOVING AND INSTALLING .
Disconnect clutch cable from clutch pedal, see CLUTCH CABLE, REMOVING AND INSTALLING .

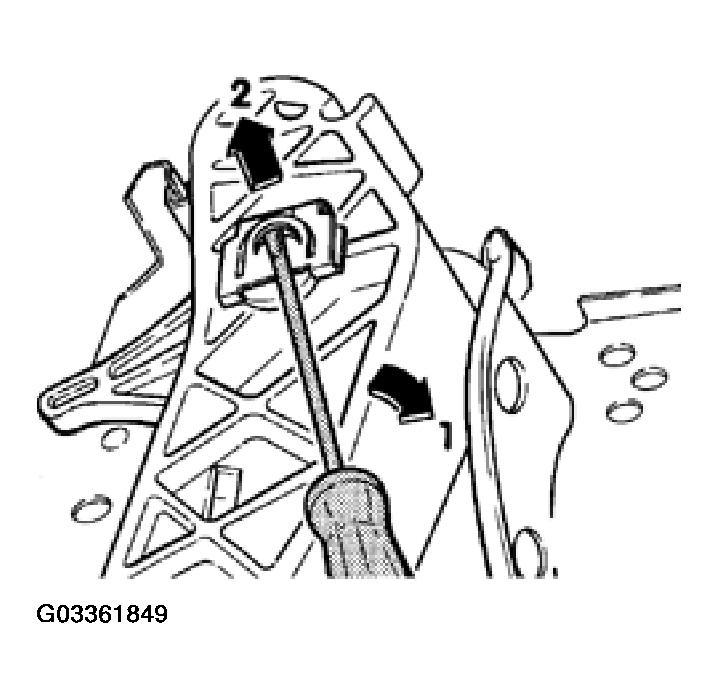

Remove clutch pedal retaining clip from pivot pin by using screwdriver to press tab in direction of arrow -1- and pressing clip in direction of arrow -2-.

Fig 1: Removing Clutch Pedal Retaining Clip From Pivot Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove brake pedal retaining clip from pivot pin by inserting screwdriver below tab -A- and pressing clip off toward instrument panel (in direction of arrow).
Pull pivot pin out to right until clutch pedal can be removed.

Fig 2: Removing Brake Pedal Retaining Clip From Pivot Pin
Courtesy of VOLKSWAGEN OF AMERICA, INC.
